Find the right CNC machine.

Horizontal Machining Centers

HMC1000

• Table size (mm)1000×1000
• Max. worktable load(kg)3500
• T-slot (number*width*distance)7-22-125

Official parameter sheet

Horizontal Machining Centers

HMC1000S-DT

• Table size (mm)1000×1000
• Max. worktable load(kg)4000
• T-slot (number*width*distance)5-22-160

Official parameter sheet

Horizontal Machining Centers

HMC1075

• Table size (mm)1300×600
• Max. worktable load(kg)800
• T-slot (number*width*distance)5-18-100

Official parameter sheet

Horizontal Machining Centers

HMC1395

• Table size (mm)1400×700
• Max. worktable load(kg)1500
• T-slot (number*width*distance)5-18-130

Official parameter sheet

Horizontal Machining Centers

HMC1400S

• Table size (mm)1400×1400
• Max. load capacity(kg)5000
• T-slot (number*width*distance)7-22-125

Official parameter sheet

Horizontal Machining Centers

HMC1600S

• Table size (mm)1600×1600
• Max. load capacity(kg)10000
• T-slot (number*width*distance)7-28-220

Official parameter sheet

Horizontal Machining Centers

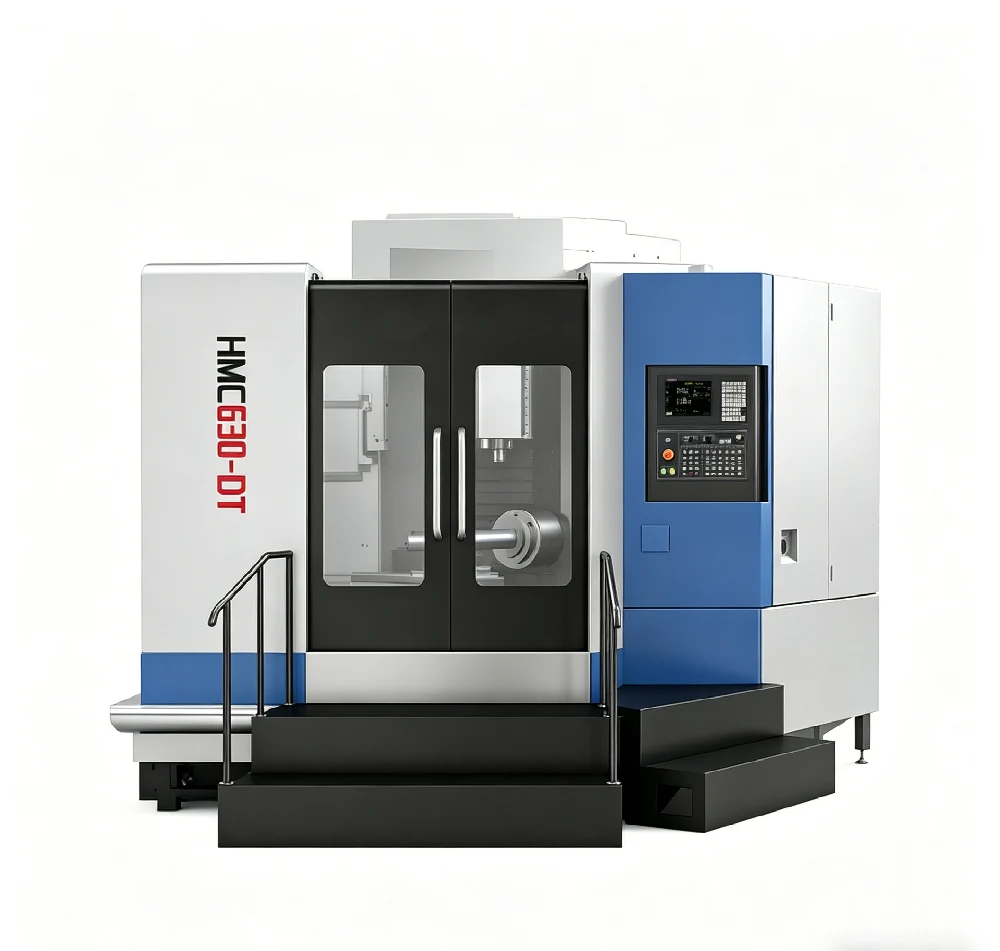

HMC630

• Table size (mm)630×630
• Max. worktable load(kg)1200
• X-axis travel(mm)1100

Official parameter sheet

Horizontal Machining Centers

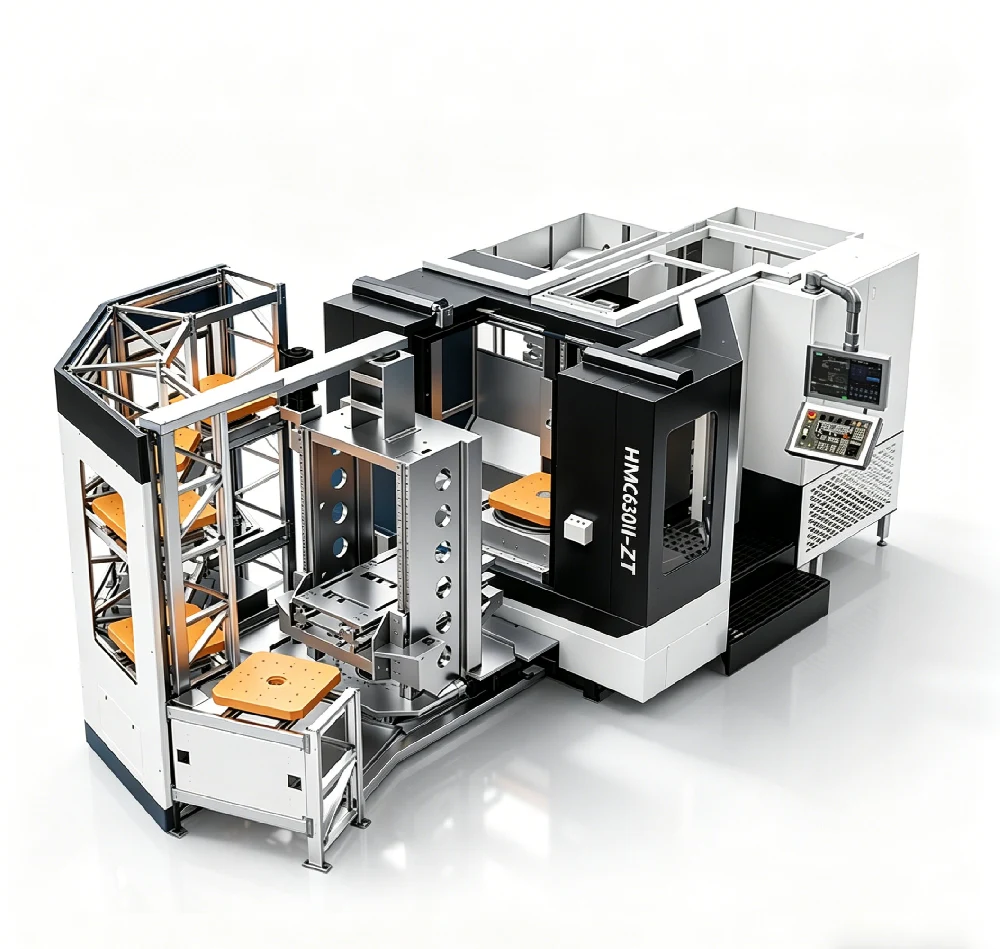

HMC630II-ZT

• Table size (mm)630×630
• Max. worktable load(kg)1200
• X-axis travel(mm)1100

Official parameter sheet

Horizontal Machining Centers

HMC800

• Table size (mm)800×800
• Max. worktable load(kg)2500
• T-slot (number*width*distance)7-22-100

Official parameter sheet

Horizontal Machining Centers

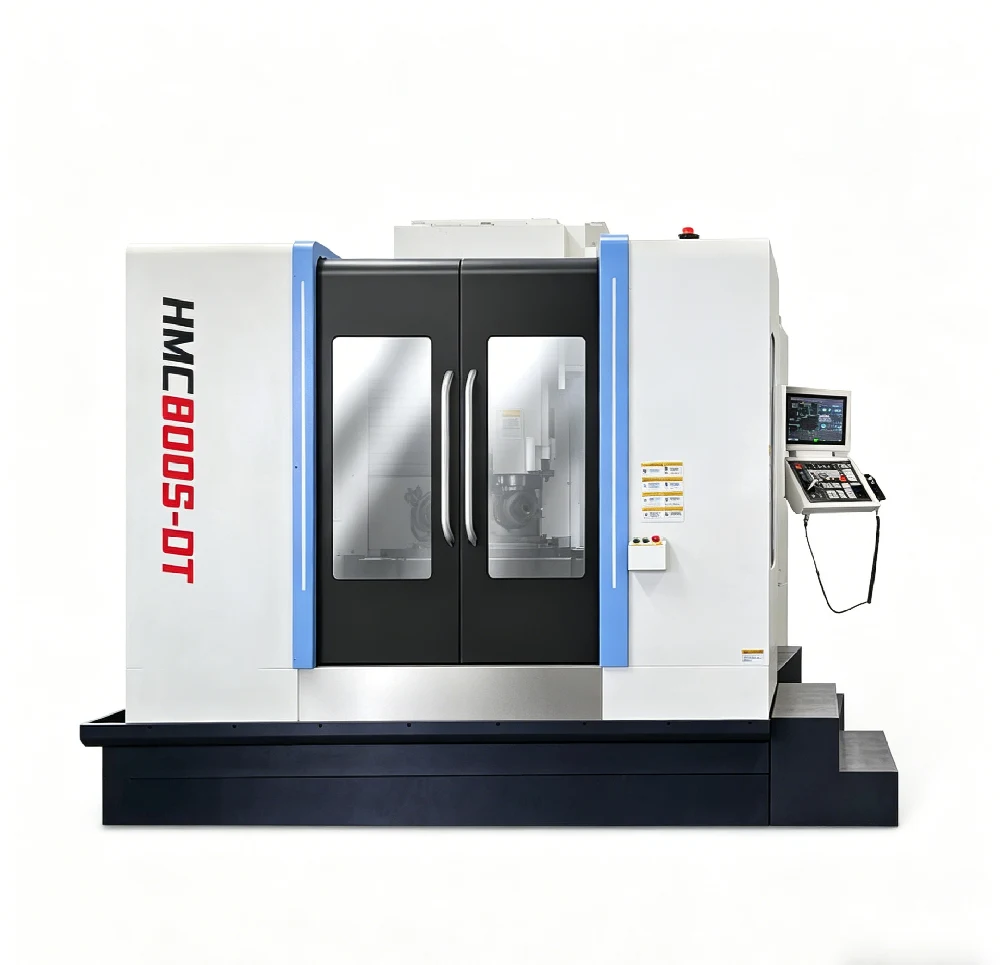

HMC800S-DT

• Table size (mm)800×800
• Max. worktable load(kg)2000
• T-slot (number*width*distance)7-22-100

Official parameter sheet

CNC Mill-Turn Machines

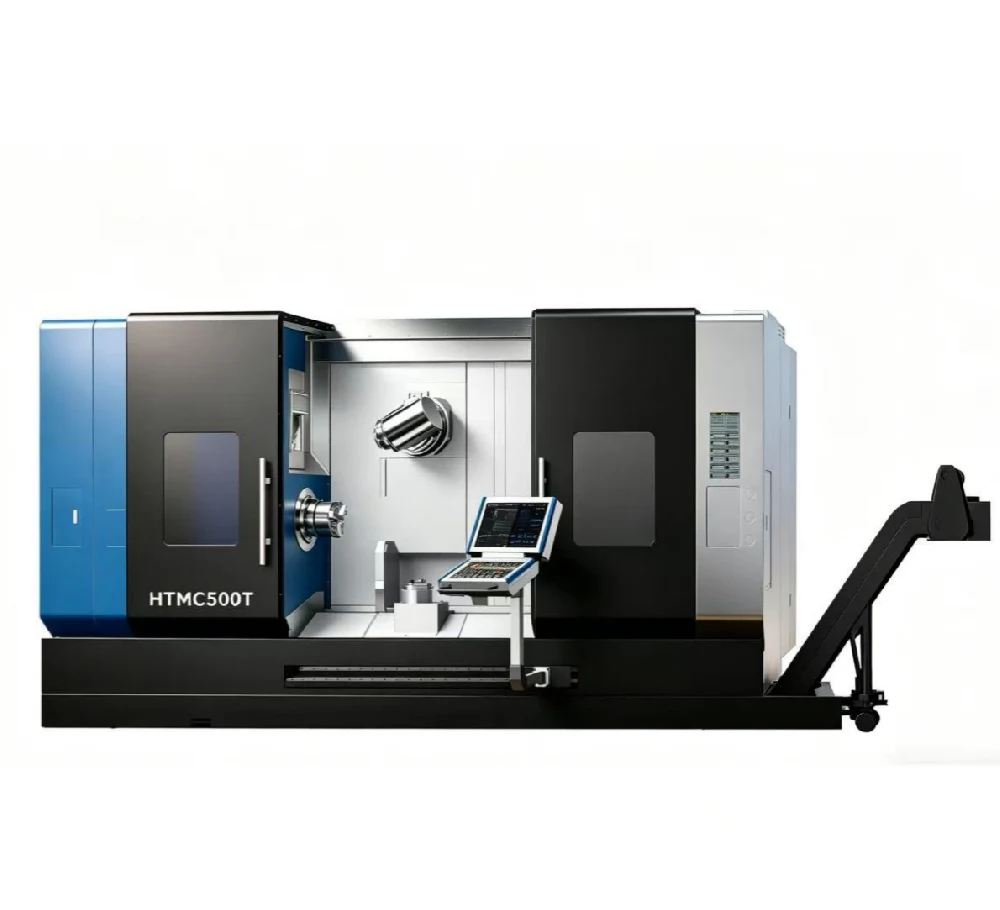

HTMC500T

• Max. swing over bed(mm)700
• Max. turning length(mm)1250
• Max. turning diameter(mm)500

Official parameter sheet

Horizontal Machining Centers

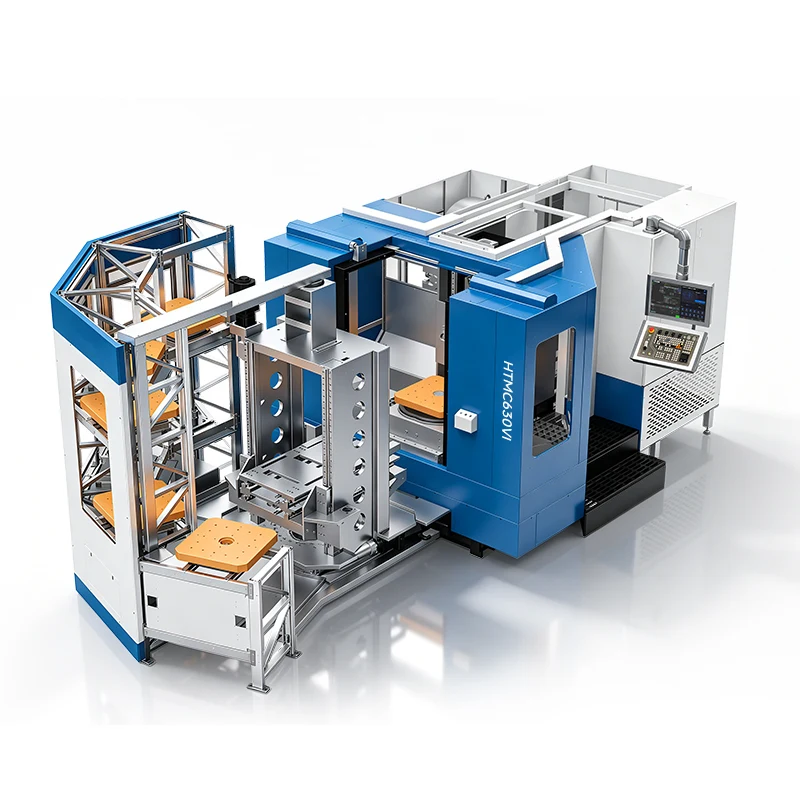

HTMC630-VI

• Table size (mm)630×630
• Max. load capacity(kg)500
• X-axis travel(mm)1050

Official parameter sheet

CNC Mill-Turn Machines

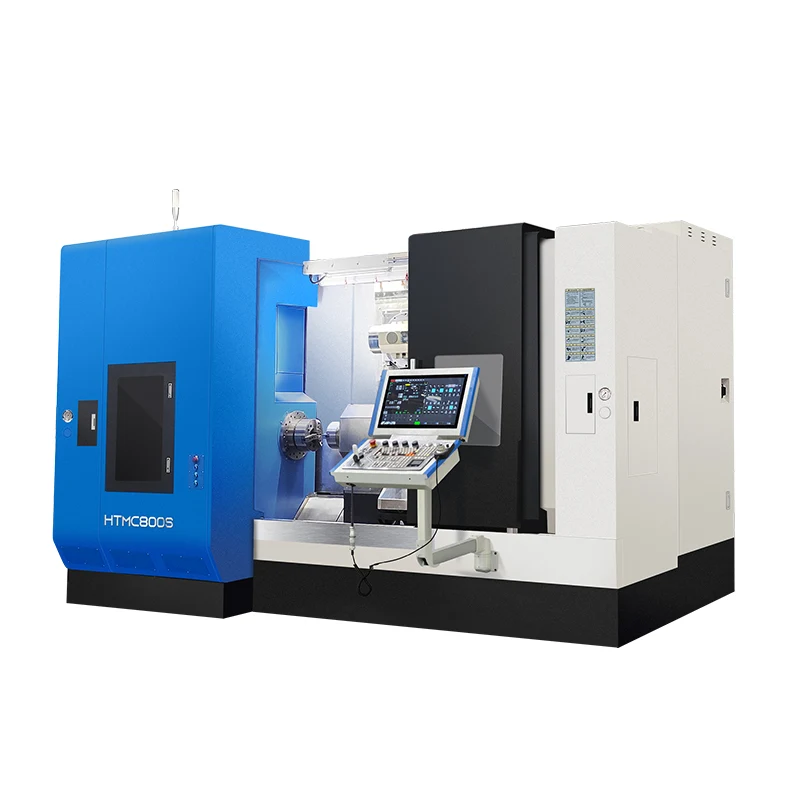

HTMC800S

• Max. swing over bed(mm)600
• Max. turning length(mm)1200
• Max. turning diameter(mm)580

Official parameter sheet

CNC Mill-Turn Machines

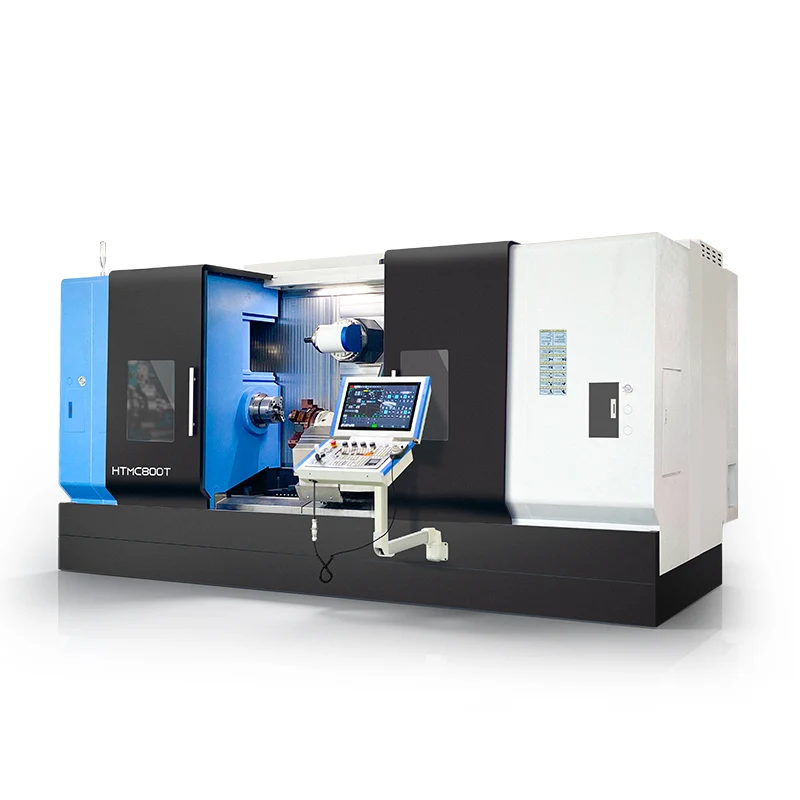

HTMC800T

• Max. swing over bed (mm)700 / 330 (lower turret)
• Max. turning length( mm)1500
• Max. turning diameter (mm)600 / 330 (lower turret)

Official parameter sheet

5-Axis Machining Centers

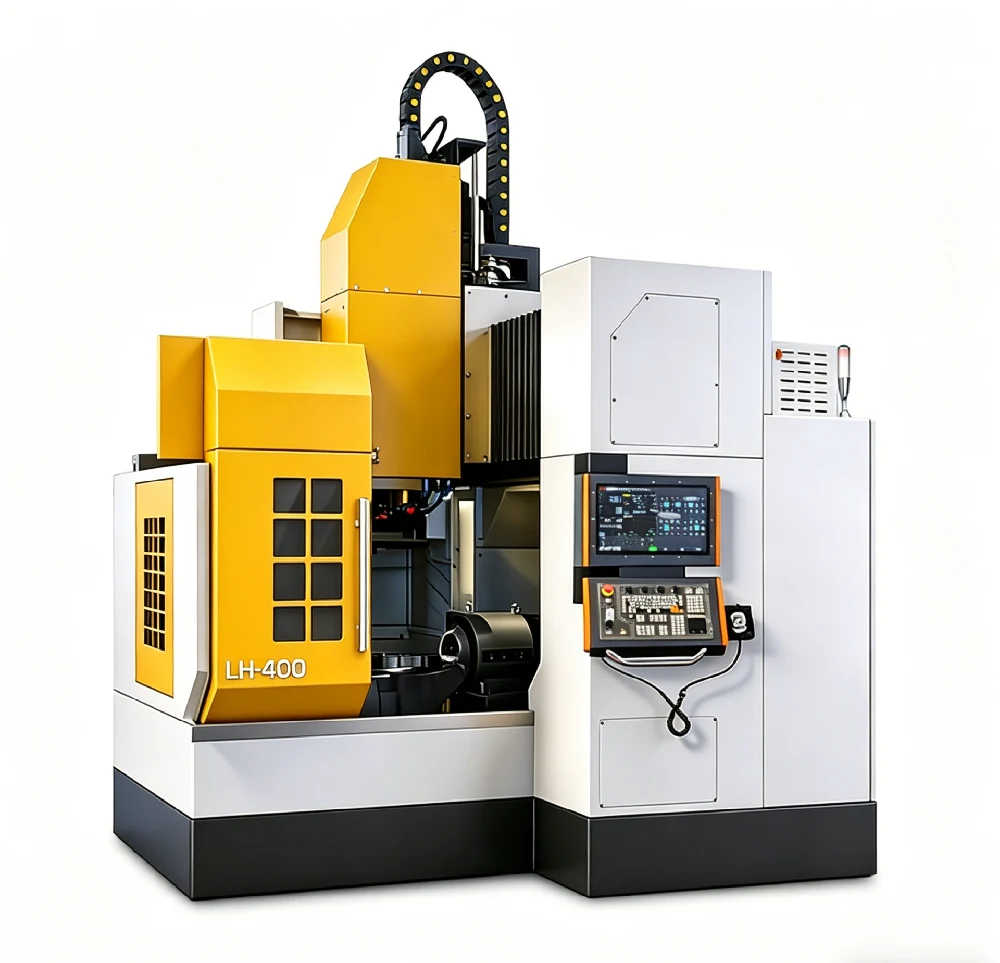

LH400

• Table size (mm)Φ400
• Max. worktable load(kg)200
• X-axis travel(mm)600

Official parameter sheet

5-Axis Machining Centers

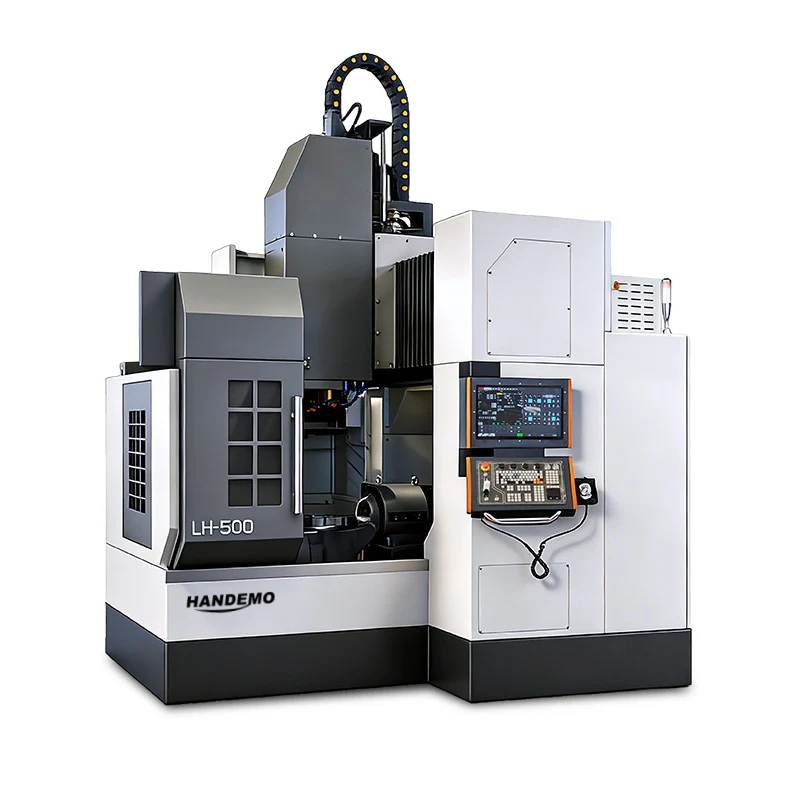

LH500

• Table size (mm)Φ500
• Max. worktable load(kg350
• X-axis travel(mm)600

Official parameter sheet

CNC Mill-Turn Machines

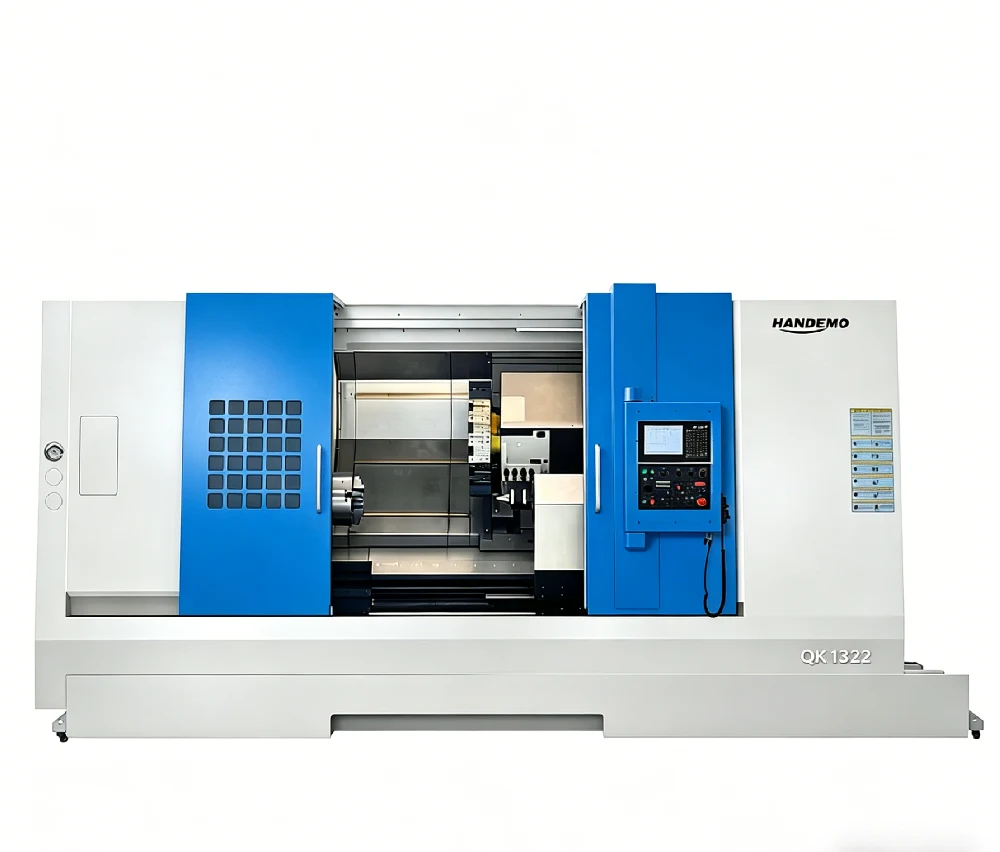

QK1322

• Max. swing over bed(mm)1000
• Max. turning length(mm)1350
• Max. turning diameter(mm)800

Official parameter sheet

CNC Mill-Turn Machines

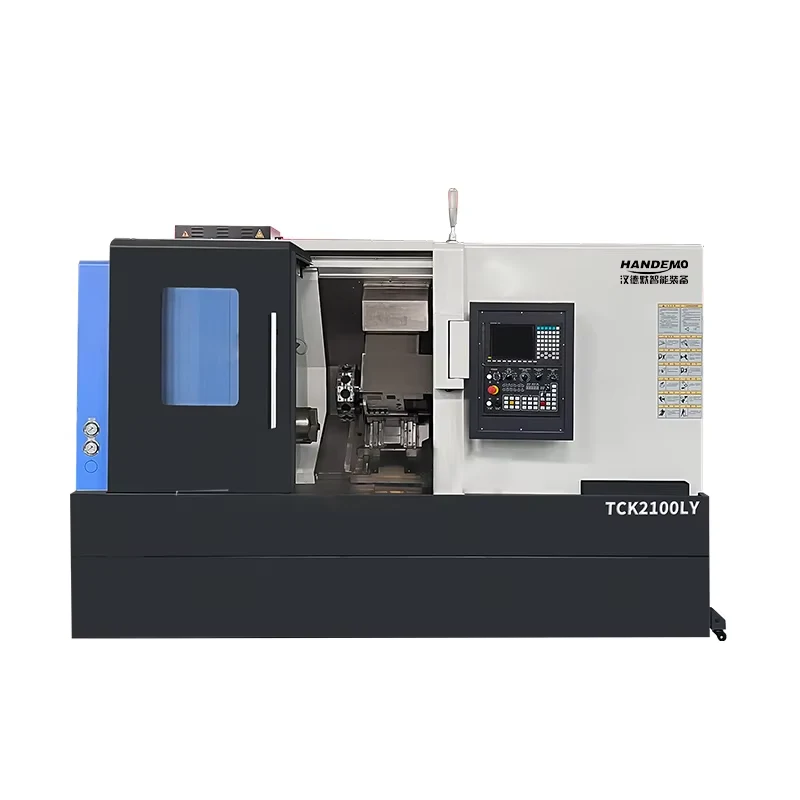

TCK2100LY

• Max. turning diameter on bed(mm)650
• Max. cutting length(mm)500
• Max. cutting diameter(mm)350

Official parameter sheet

CNC Mill-Turn Machines

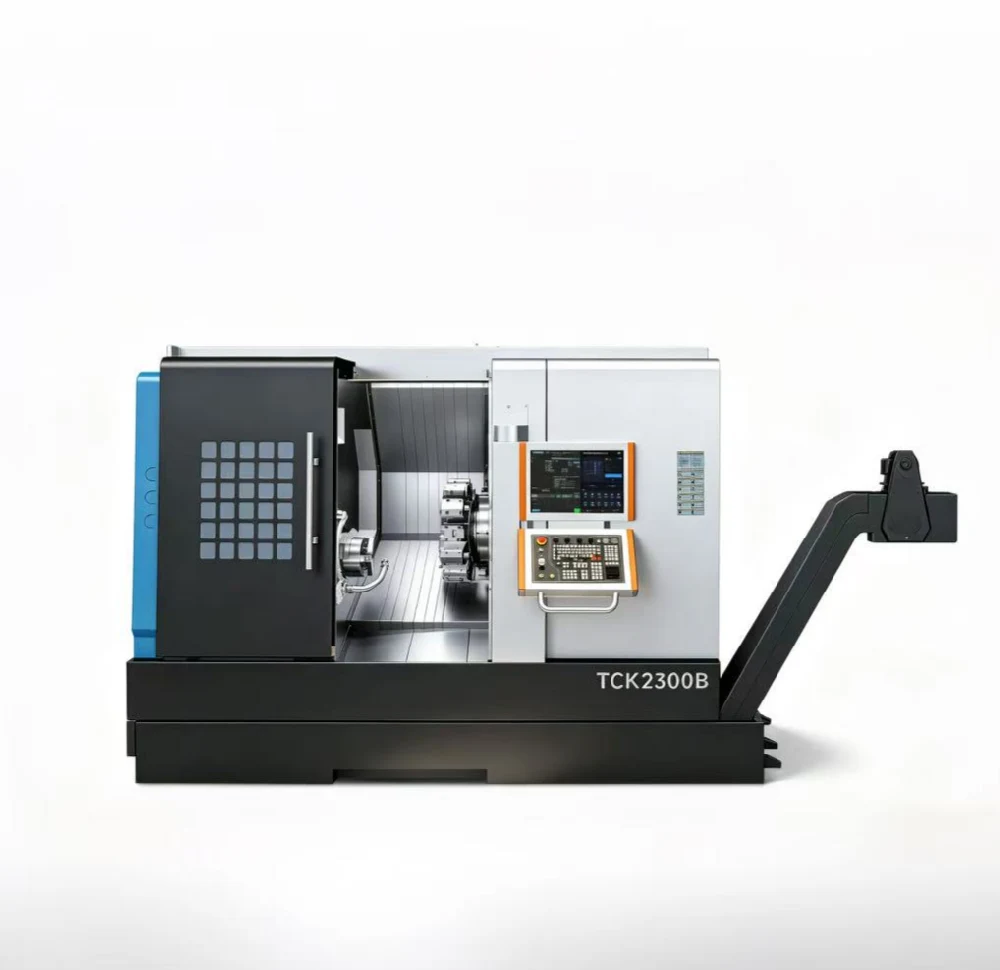

TCK2300B

• Max. swing over bed(mm)700
• Max. turning length(mm)500
• Max. turning diameter(mm)400

Official parameter sheet

CNC Mill-Turn Machines

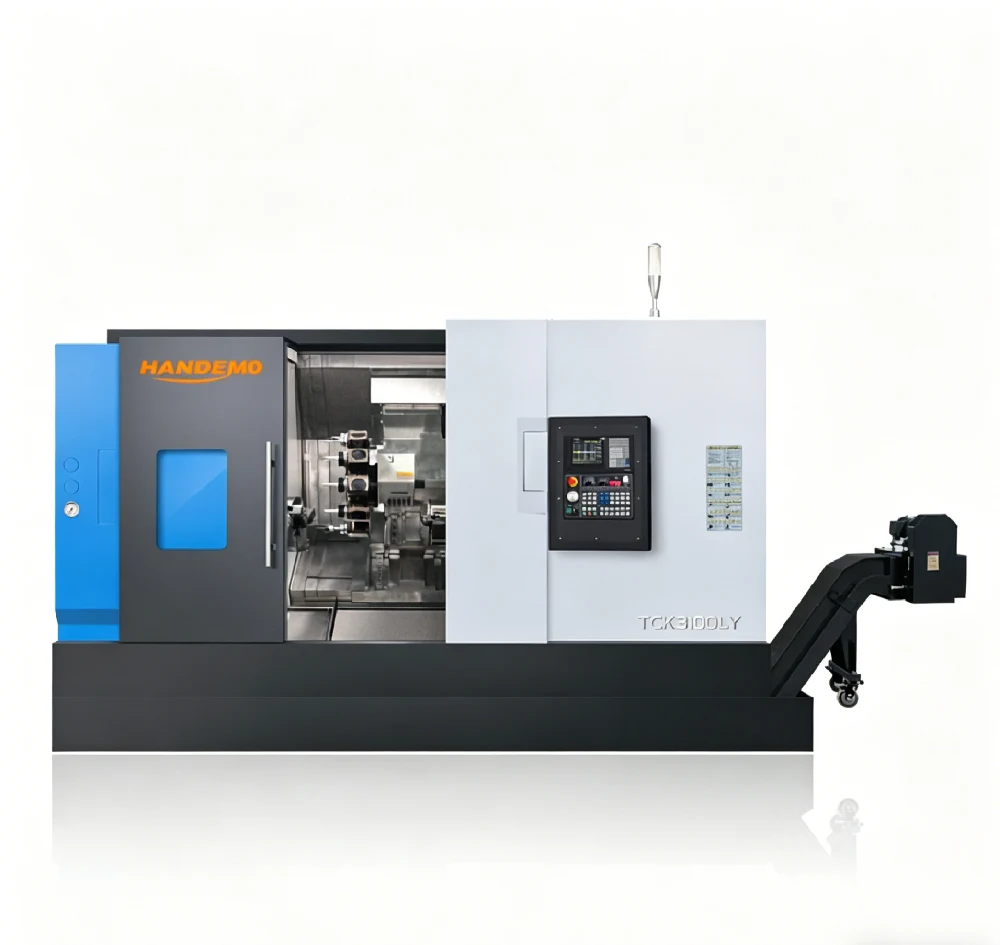

TCK3100LY

• Max. swing over bed (mm)750
• Max. turning length (mm)1000
• Max. turning diameter (mm)500

Official parameter sheet

CNC Mill-Turn Machines

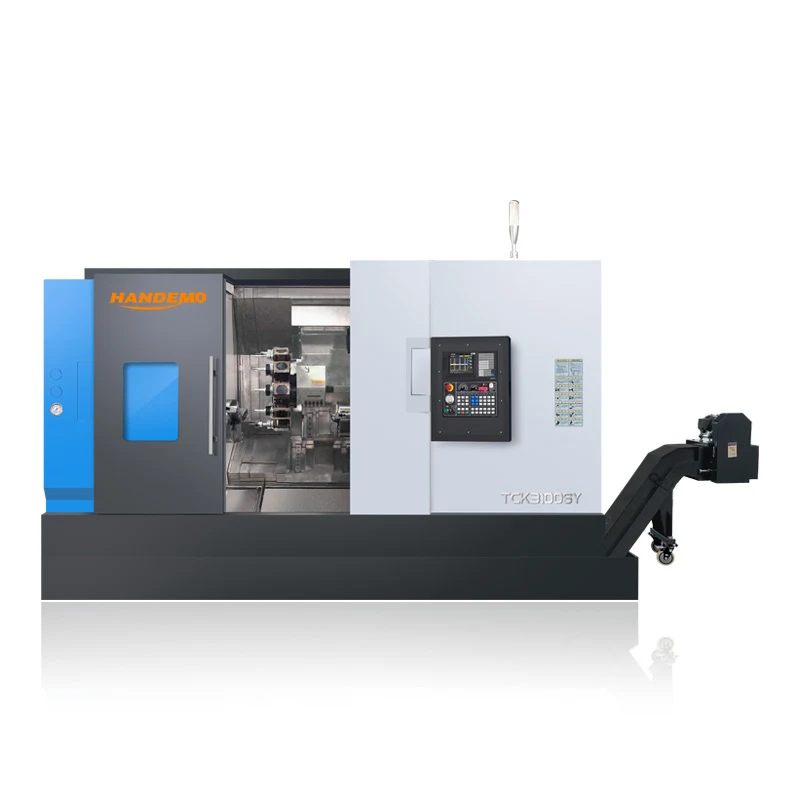

TCK3100SY

• Max. turning diameter on bed(mm)750
• Max. cutting length(mm)1000
• Max. cutting diameter(mm)500

Official parameter sheet

CNC Slant Bed Lathes

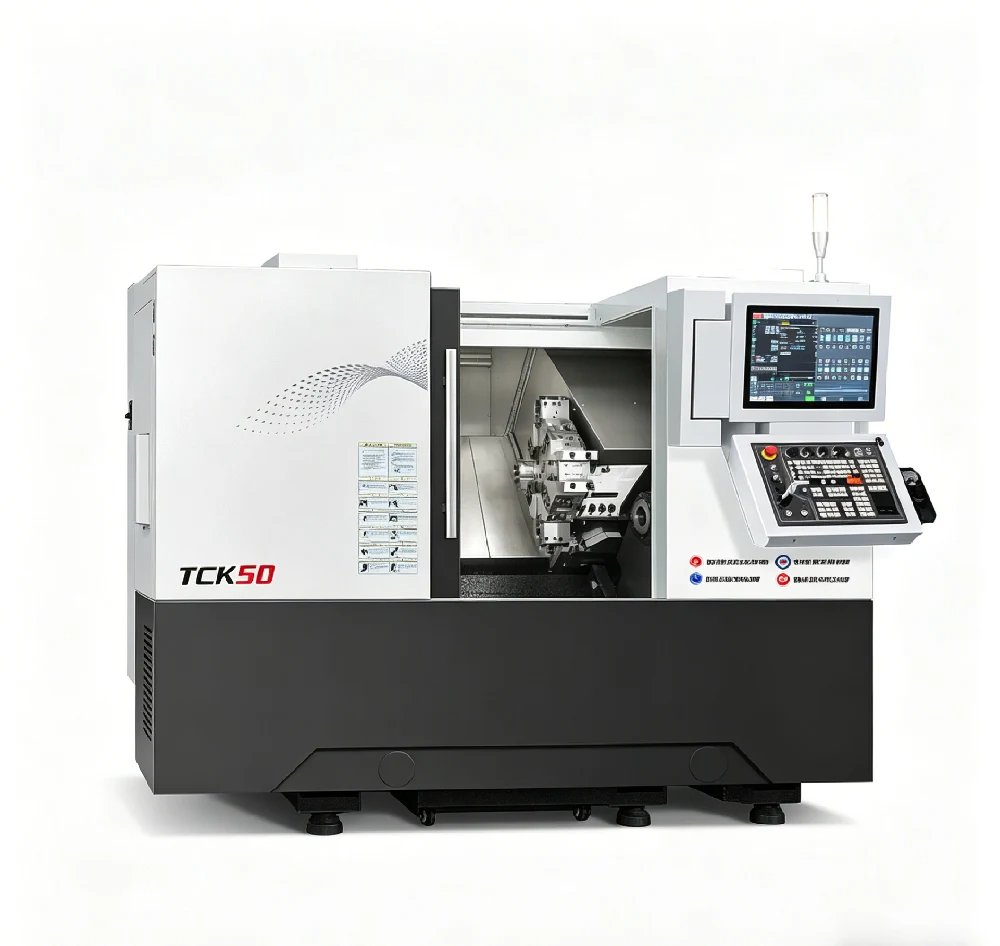

TCK50

• Max. turning diameter on bed(mm)500 / 560
• Max. cutting length(mm)500 / 550
• Max. cutting diameter(mm)360 / 500

Official parameter sheet

CNC Slant Bed Lathes

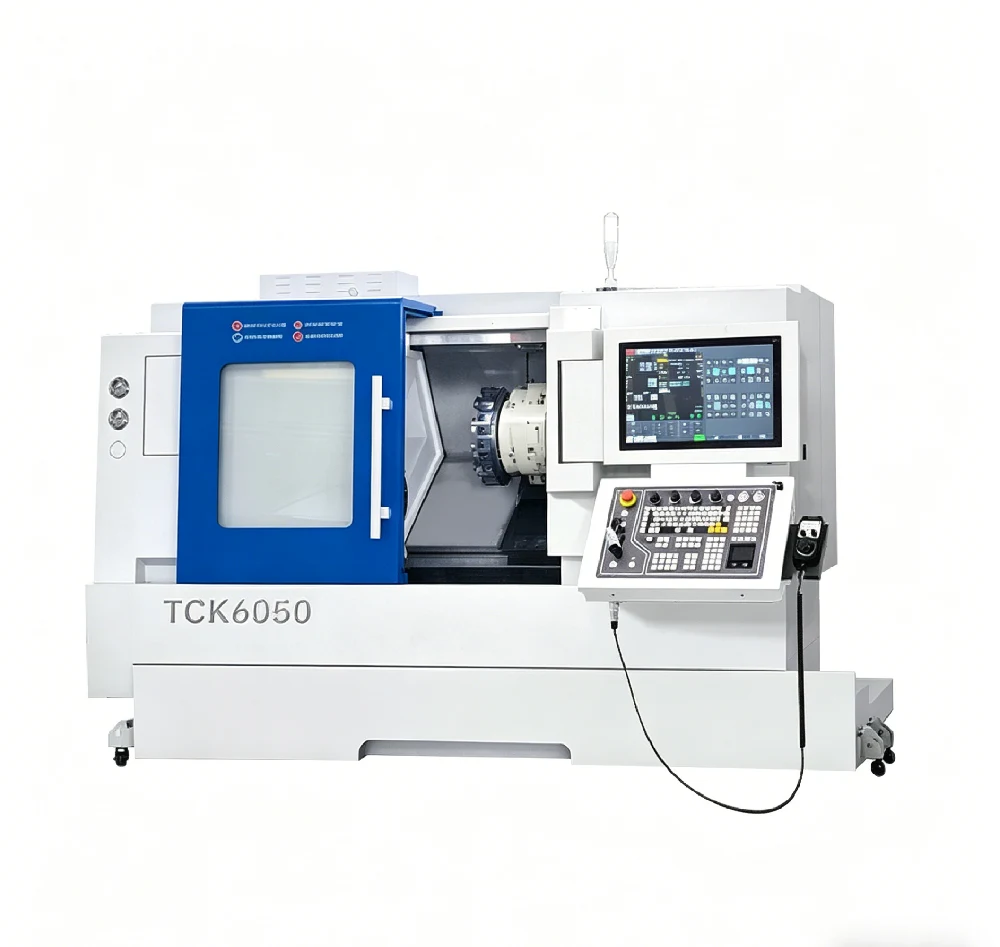

TCK6050-500

• Max. swing over bed (mm)560 / 560
• Max. turning length (mm)550 / 1050
• Max. turning diameter (mm)500 / 500

Official parameter sheet

CNC Slant Bed Lathes

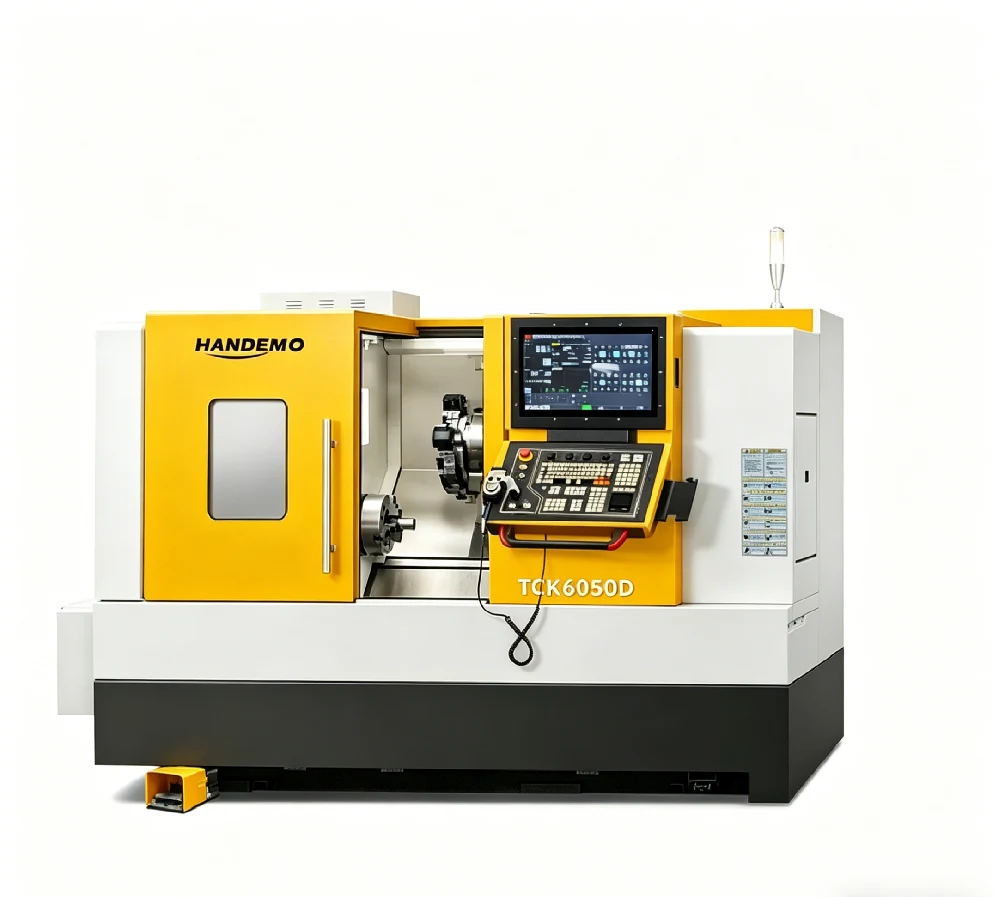

TCK6050D-500

• Max. swing over bed(mm)560 / 560
• Max. turning length(mm)500 / 980
• Max. turning diameter (mm)410 / 410

Official parameter sheet

CNC Mill-Turn Machines

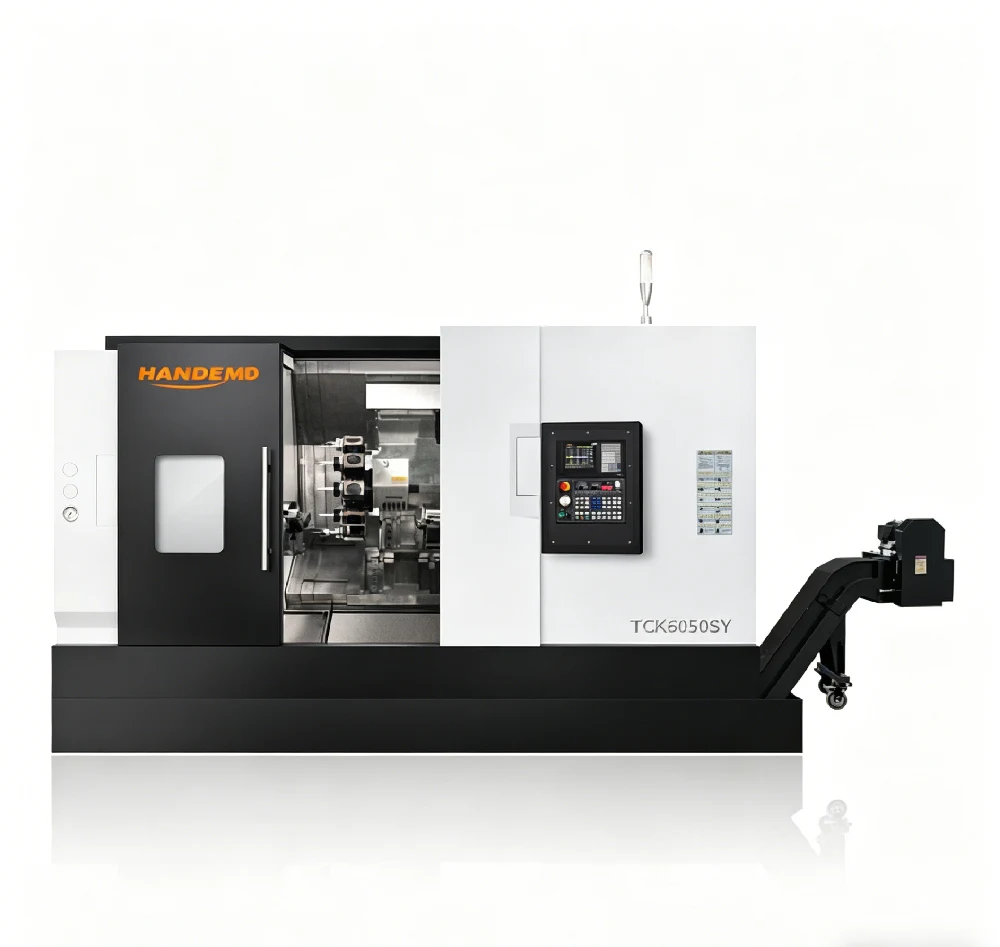

TCK6050SY

• Max. swing over bed (mm)600
• Max. turning length(mm)450
• Max. turning diameter (mm)400

Official parameter sheet

CNC Mill-Turn Machines

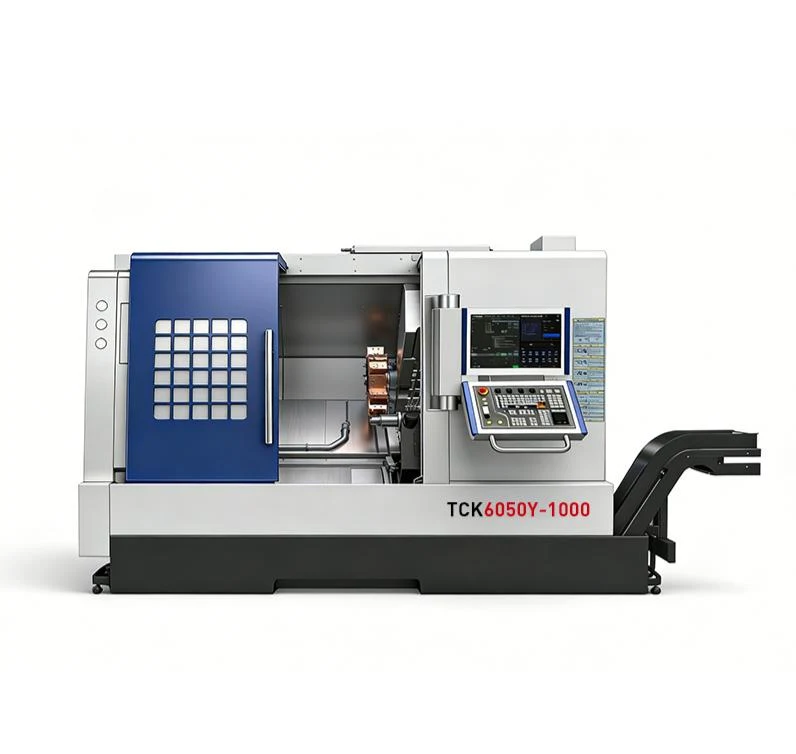

TCK6050Y-500

• Max. swing over bed(mm)560 / 560
• Max. turning length(mm)500 / 980
• Max. turning diameter(mm)410 / 410

Official parameter sheet

CNC Slant Bed Lathes

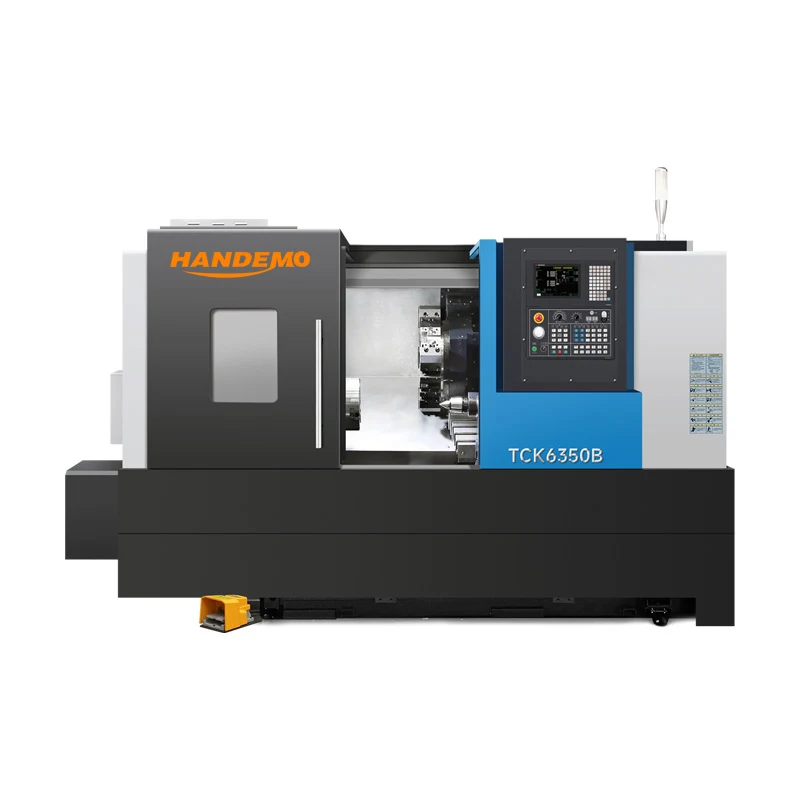

TCK6350B

• Max. turning diameter on bed(mm)630 / 630
• Max. cutting length(mm)500 / 1000
• Max. cutting diameter(mm)480 / 500

Official parameter sheet

CNC Slant Bed Lathes

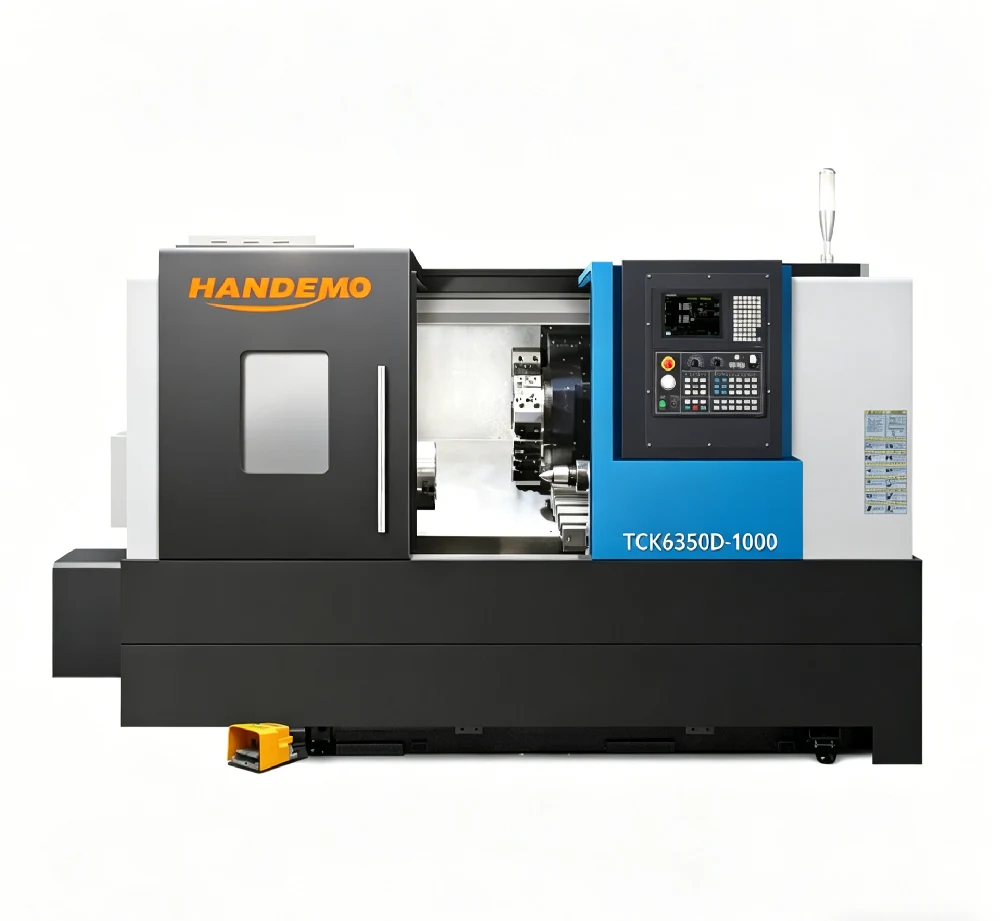

TCK6350D

• Max. turning diameter on bed(mm)630 / 630
• Max. cutting length(mm)450 / 980
• Max. cutting diameter(mm)330 / 380

Official parameter sheet

CNC Slant Bed Lathes

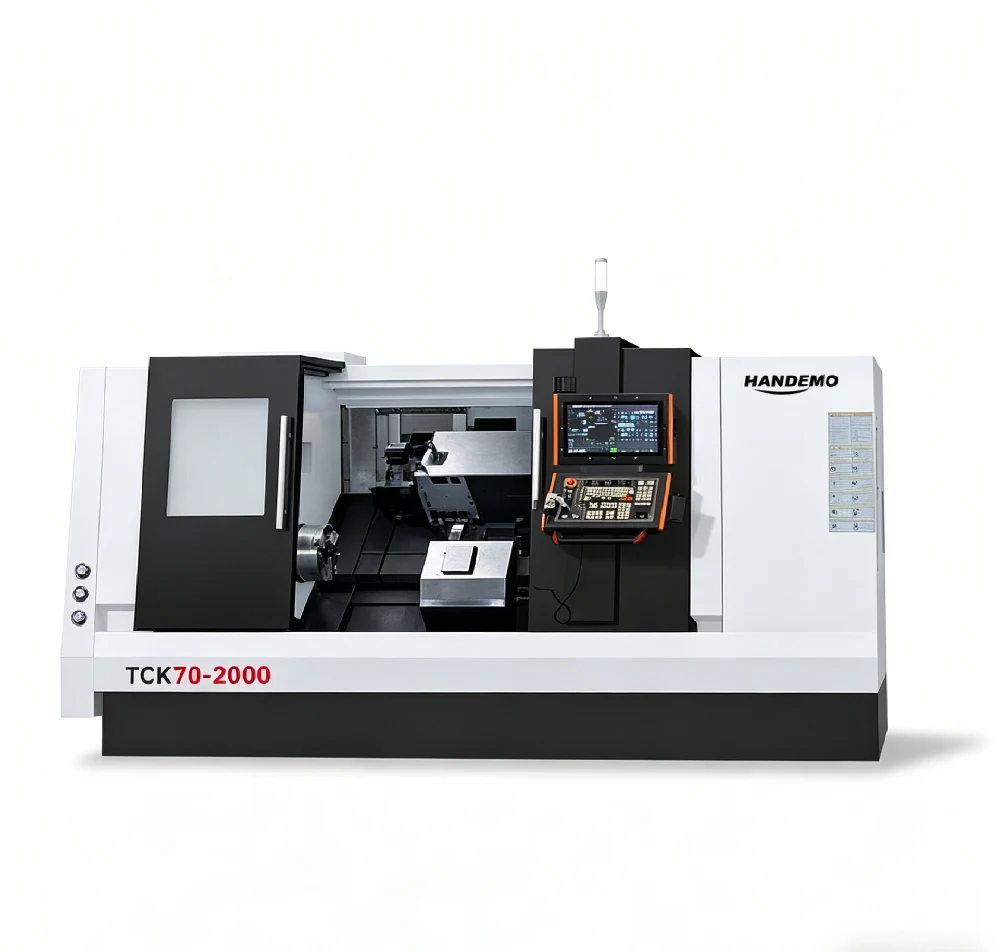

TCK70-1500

• Max. swing over bed(mm)720 / 720 / 720
• Max. turning length(mm)1500 / 2000 / 3000
• Max. turning diameter(mm)500 / 630 / 630

Official parameter sheet

CNC Slant Bed Lathes

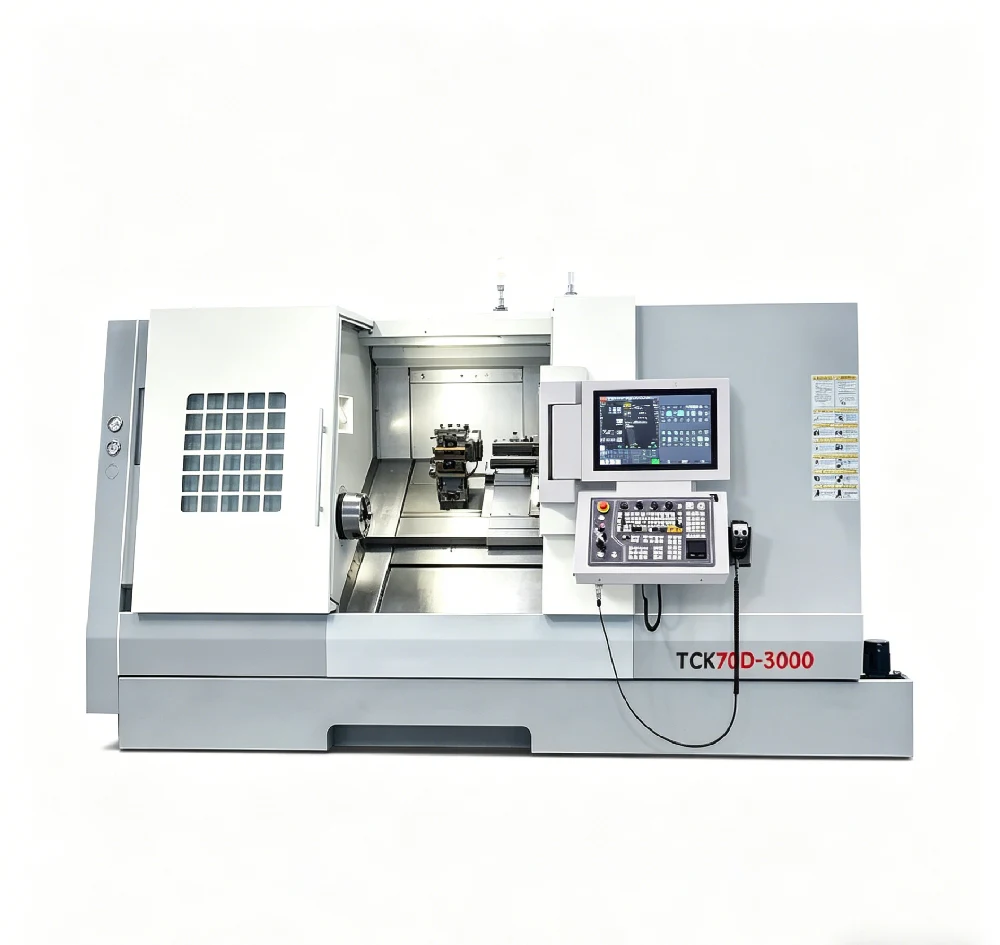

TCK70D-2000

• Max. swing over bed(mm)720 / 720
• Max. turning length(mm)1950 / 2950
• Max. turning diameter(mm)550 / 550

Official parameter sheet

CNC Mill-Turn Machines

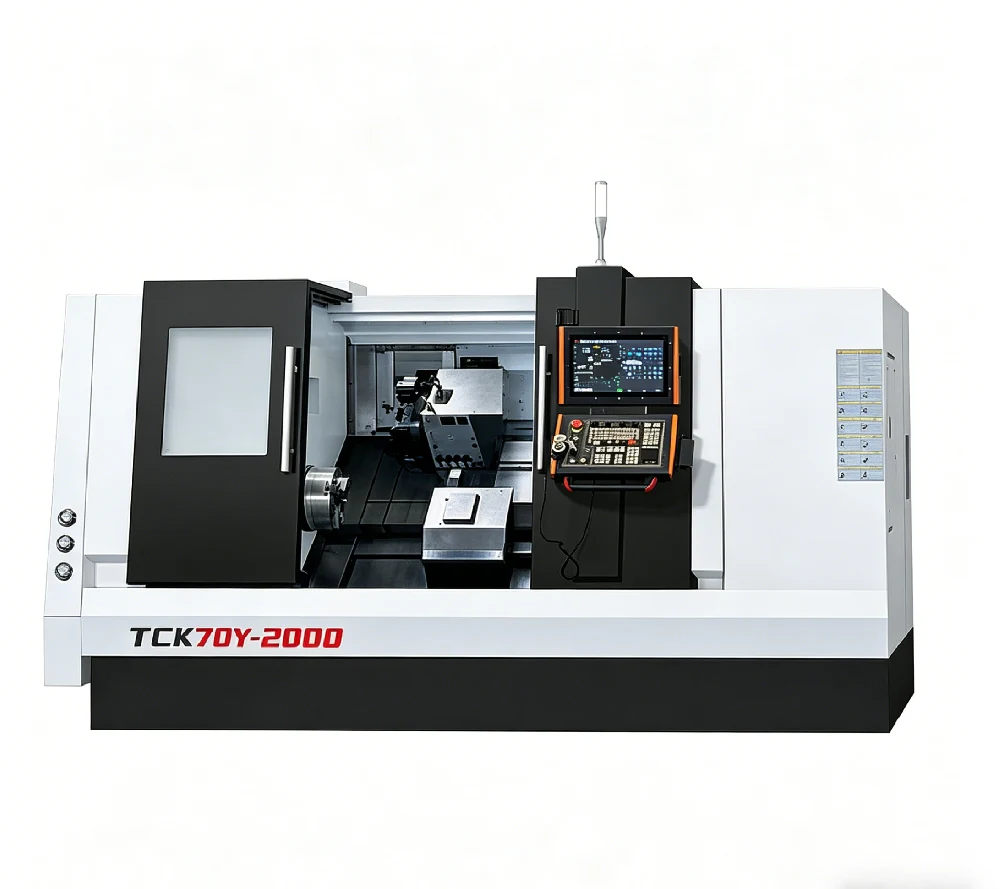

TCK70Y-1000

• Max. turning diameter on bed(mm)720 / 720 / 720 / 720
• Max. cutting length(mm)1000 / 1500 / 2000 / 3000
• Max. cutting diameter(mm)480 / 480 / 480 / 480

Official parameter sheet

CNC Slant Bed Lathes

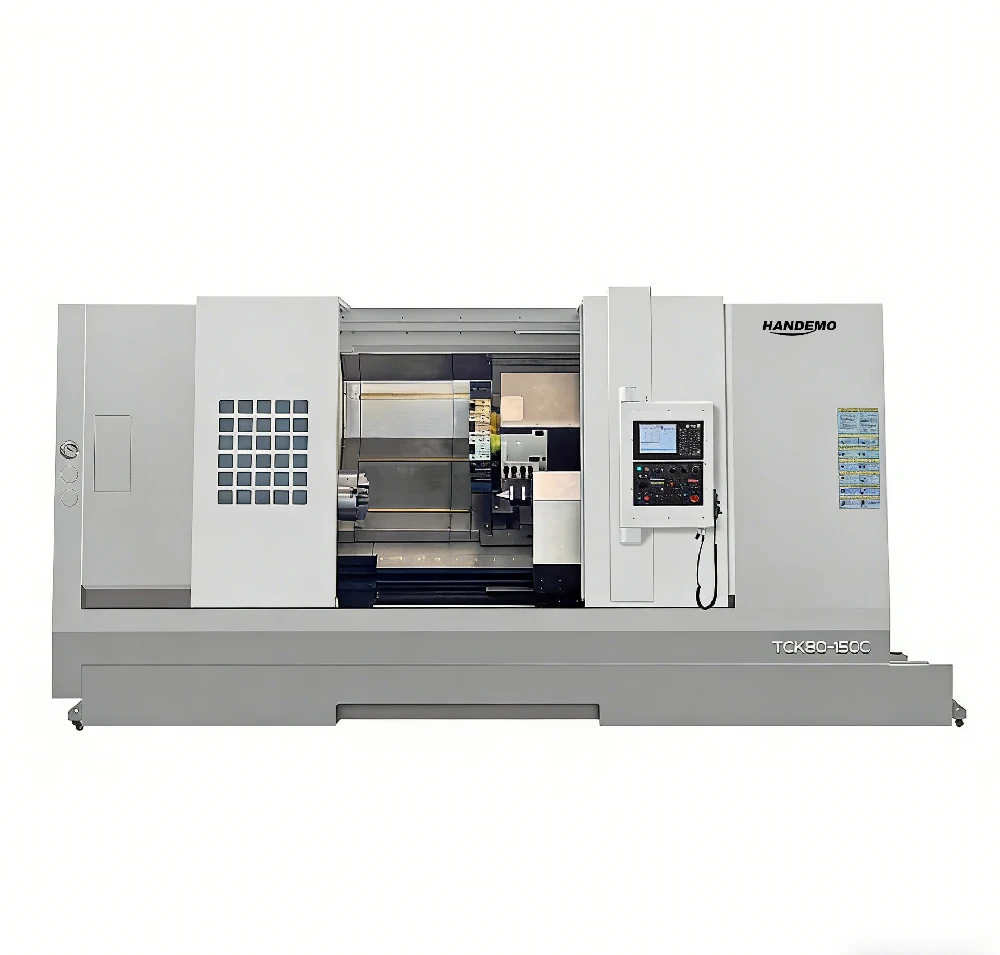

TCK80-1500

• Max. turning diameter on bed(mm)1000
• Max. cutting length(mm)1500
• Max. cutting diameter(mm)800

Official parameter sheet

CNC Slant Bed Lathes

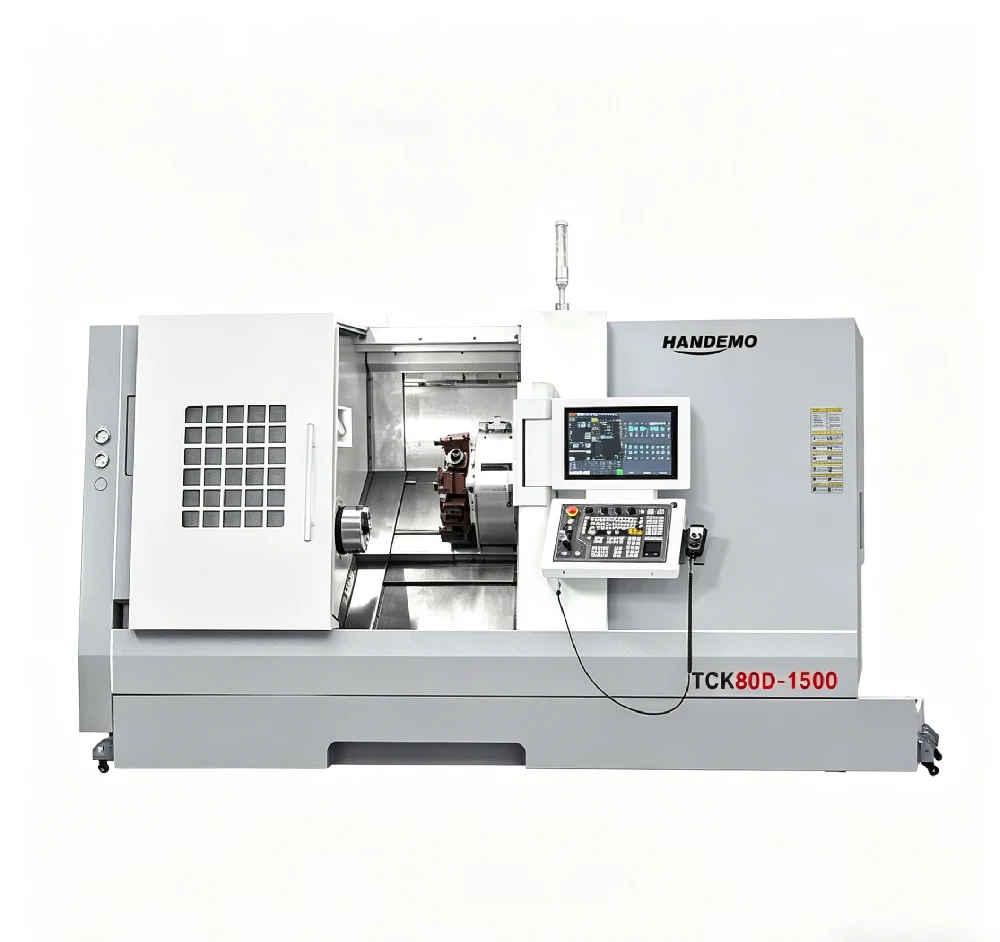

TCK80D-1500

• Max. swing over bed(mm)850
• Max. turning length(mm)1450
• Max. turning diameter(mm)700

Official parameter sheet

Horizontal Machining Centers

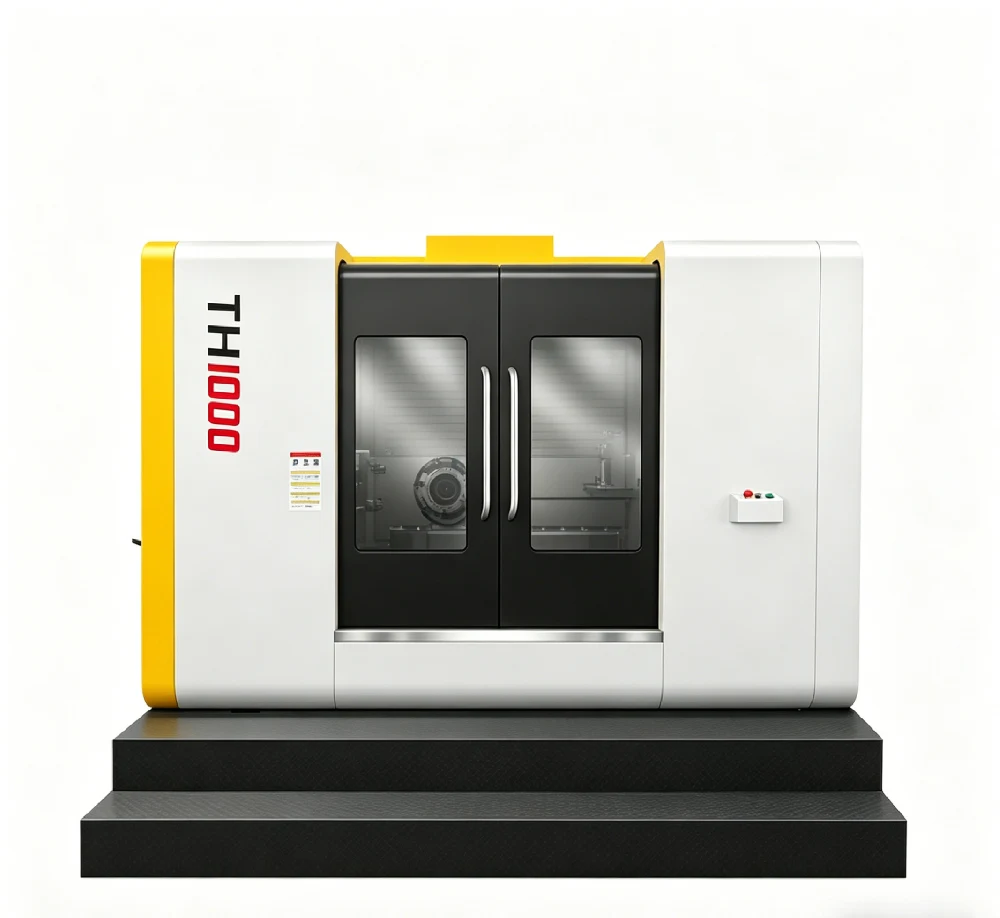

TH1000

• Table size (mm)1000×1000
• Max. worktable load(kg)3500
• T-slot (number*width*distance)7-22-125

Official parameter sheet

Horizontal Machining Centers

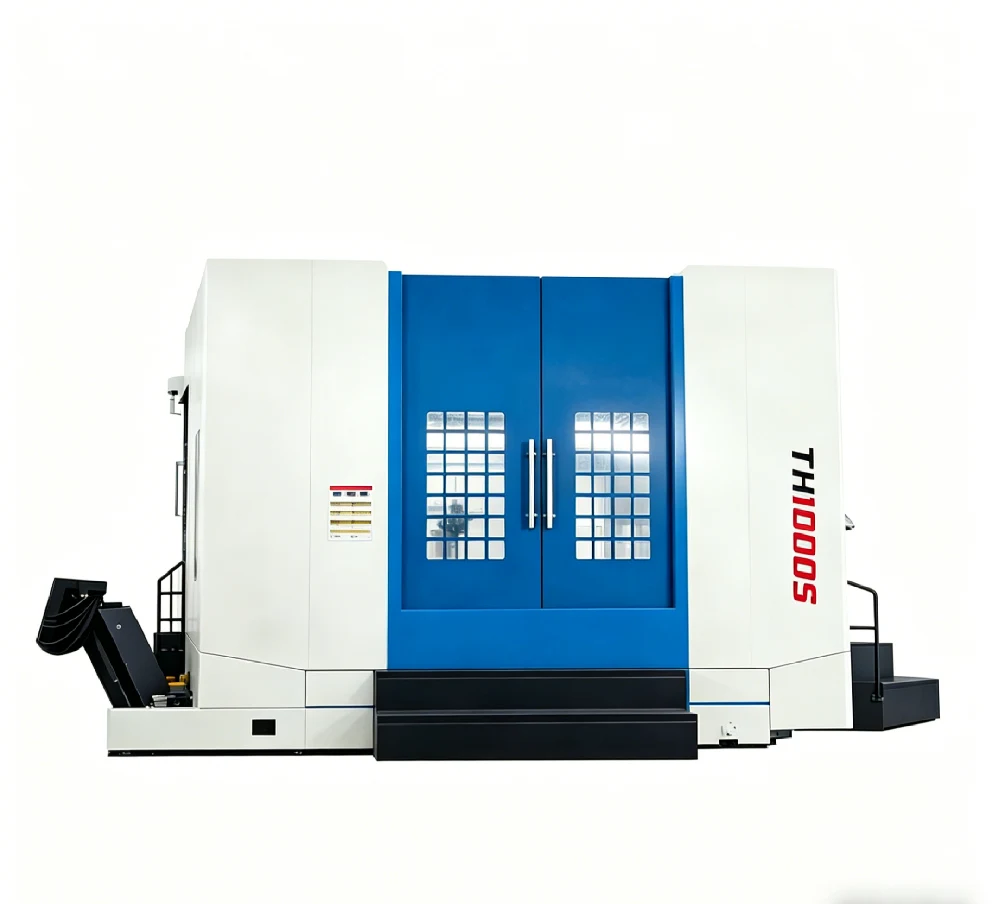

TH1000S

• Table size (mm)1000×1000
• Max. worktable load(kg)4000
• T-slot (number*width*distance)7-22-125

Official parameter sheet

Horizontal Machining Centers

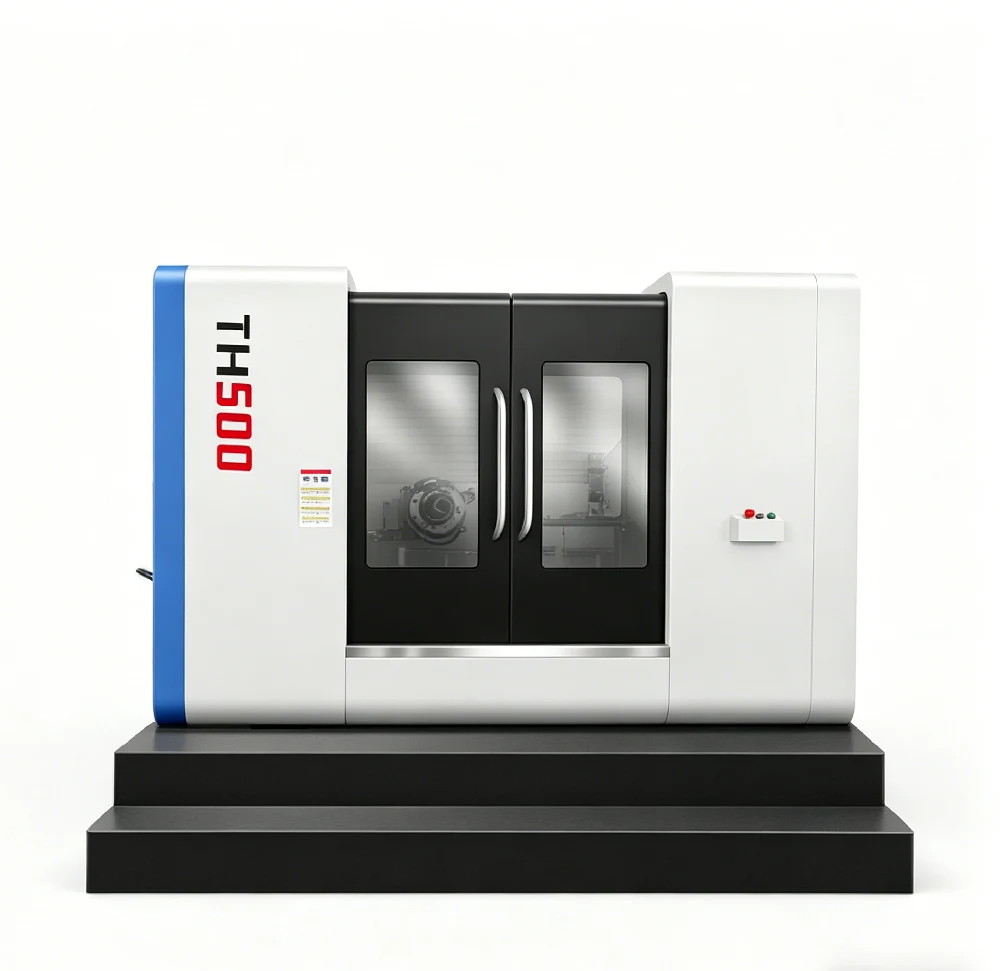

TH500

• Table size (mm)1200×600
• Max. worktable load(kg)800
• T-slot (number*width*distance)5-18-100

Official parameter sheet

5-Axis Machining Centers

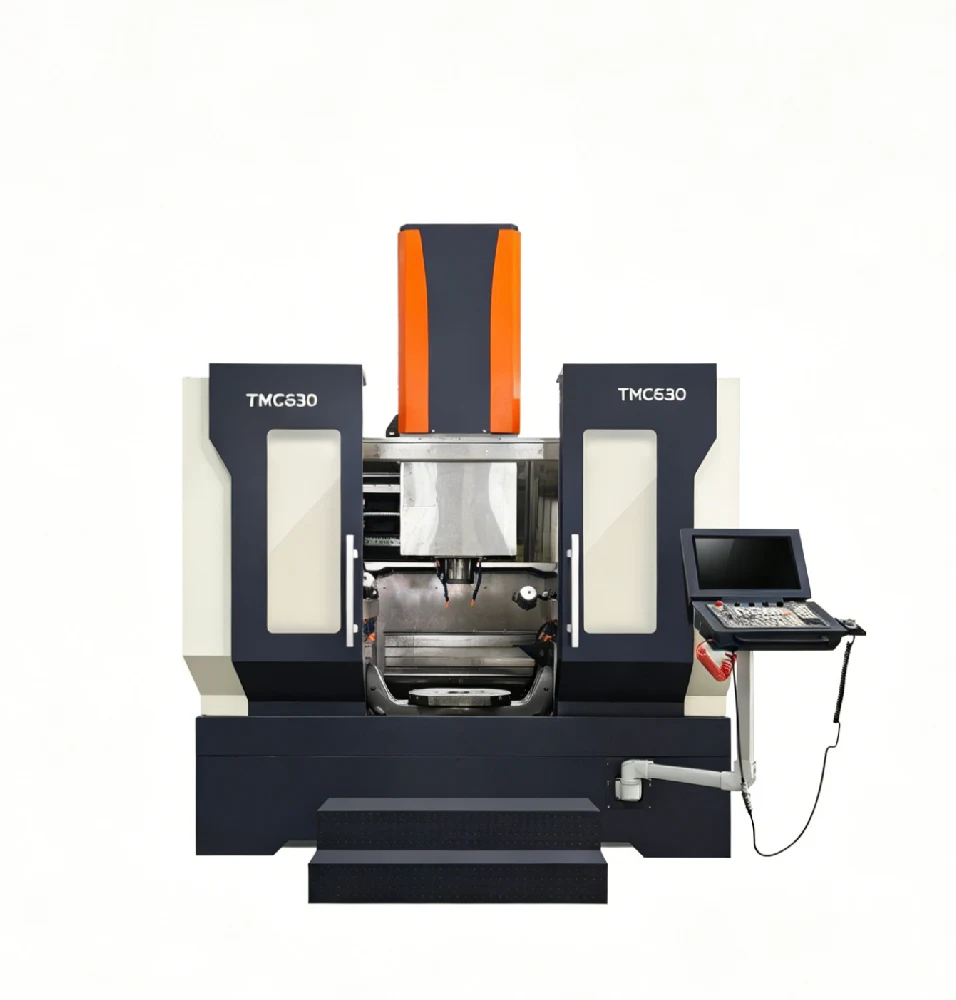

TMC630

• X-axis travel(mm)700
• Y-axis travel(mm)350 + 590 (including tool change stroke)
• Z-axis travel(mm)550

Official parameter sheet

5-Axis Machining Centers

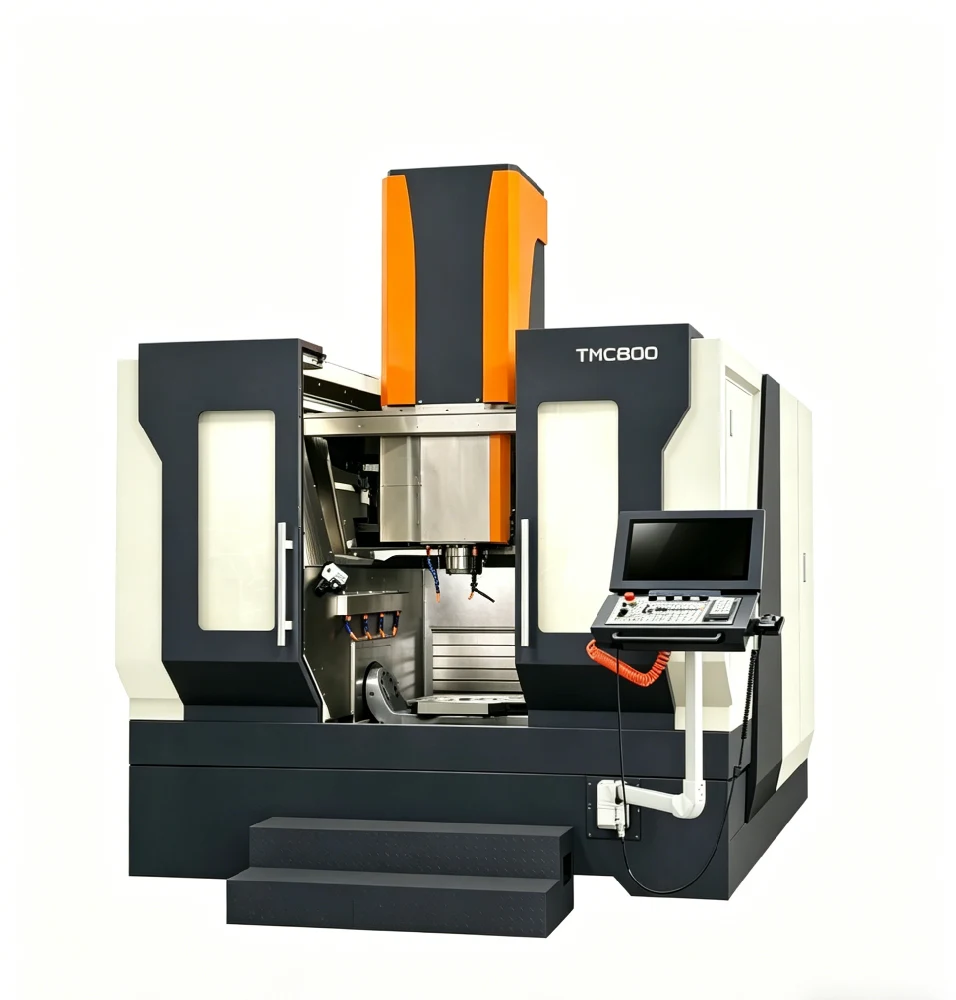

TMC800

• X-axis travel(mm)850
• Y-axis travel(mm)1040 (including tool change stroke)
• Z-axis travel(mm)600

Official parameter sheet

5-Axis Machining Centers

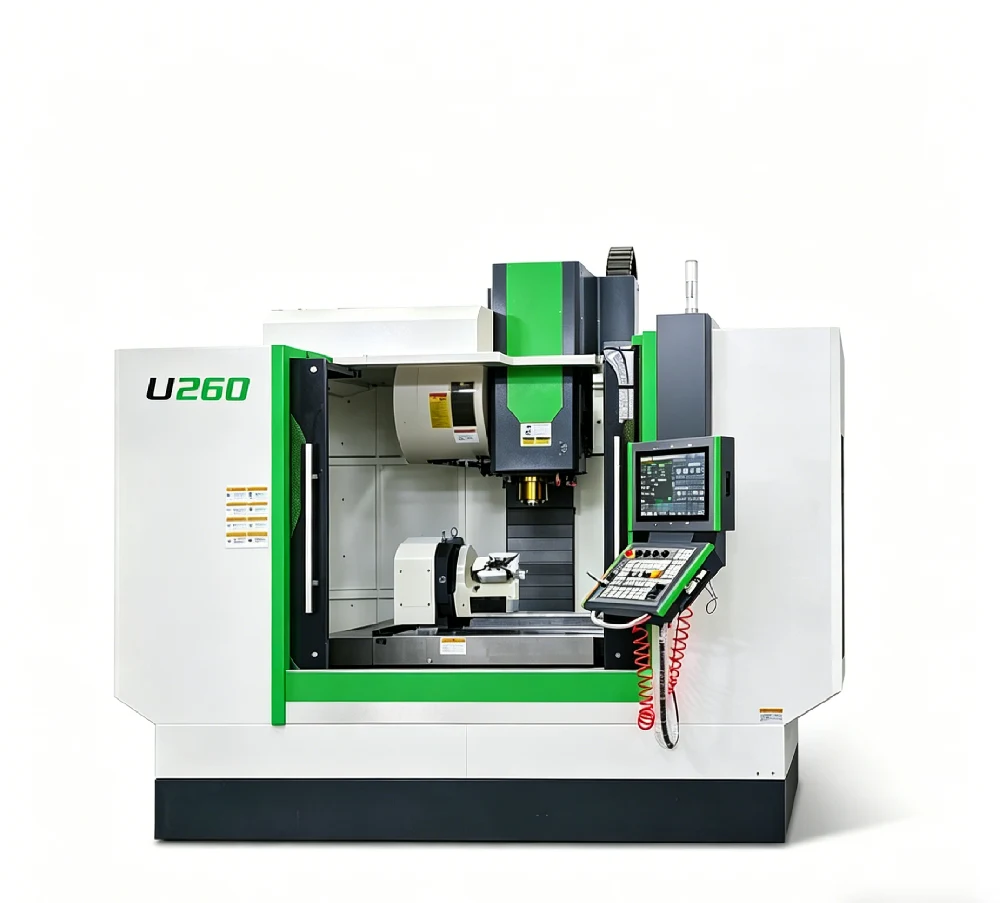

U260

• General / X-axis travel850mm
• General / Y-axis travel600mm
• General / Z-axis travel600mm

Official parameter sheet

5-Axis Machining Centers

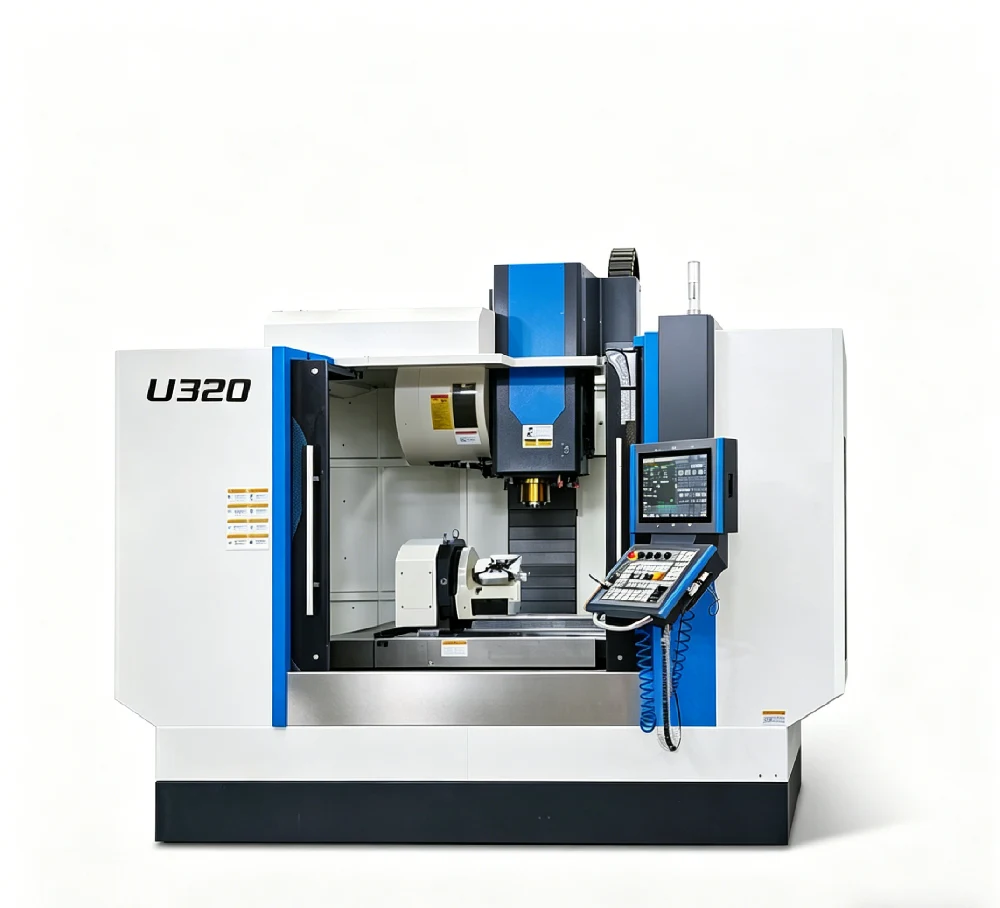

U320

• General / X-axis travel1100mm
• General / Y-axis travel650mm
• General / Z-axis travel650mm

Official parameter sheet

5-Axis Machining Centers

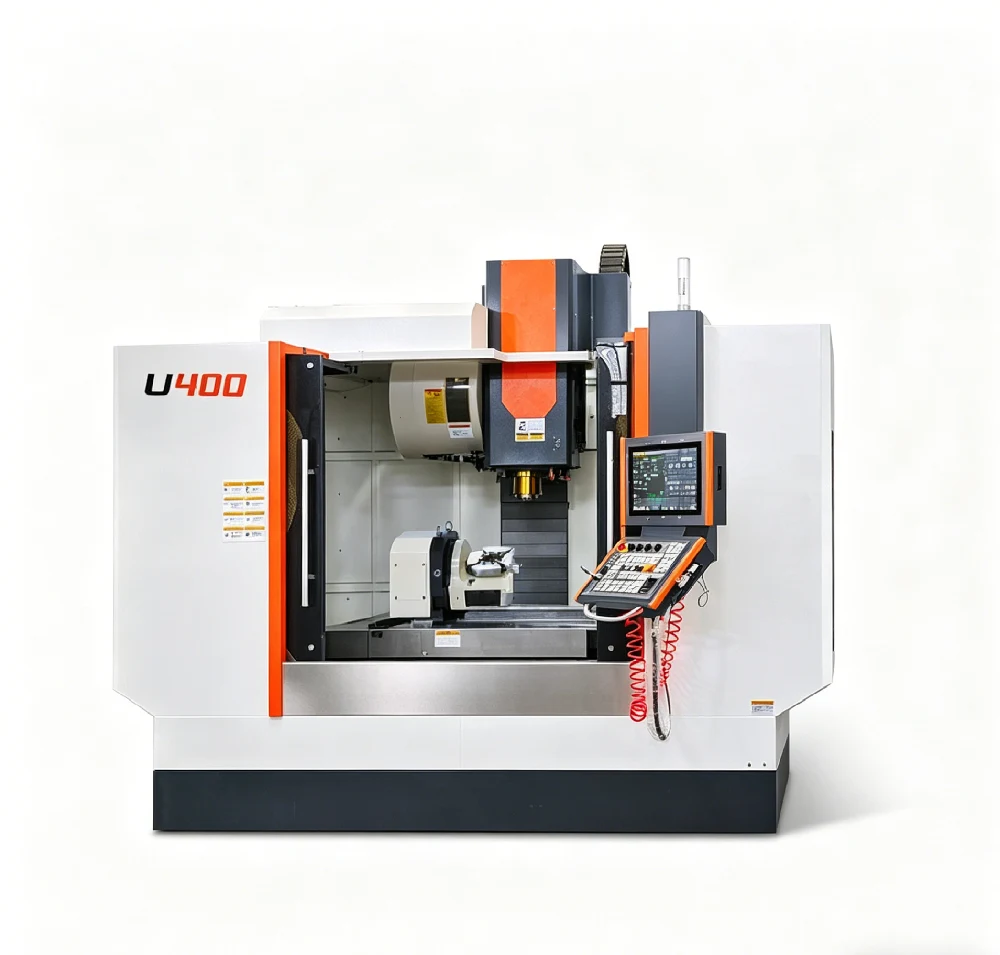

U400

• General / X-axis travel1300mm
• General / Y-axis travel700mm
• General / Z-axis travel750mm

Official parameter sheet

Vertical Machining Centers

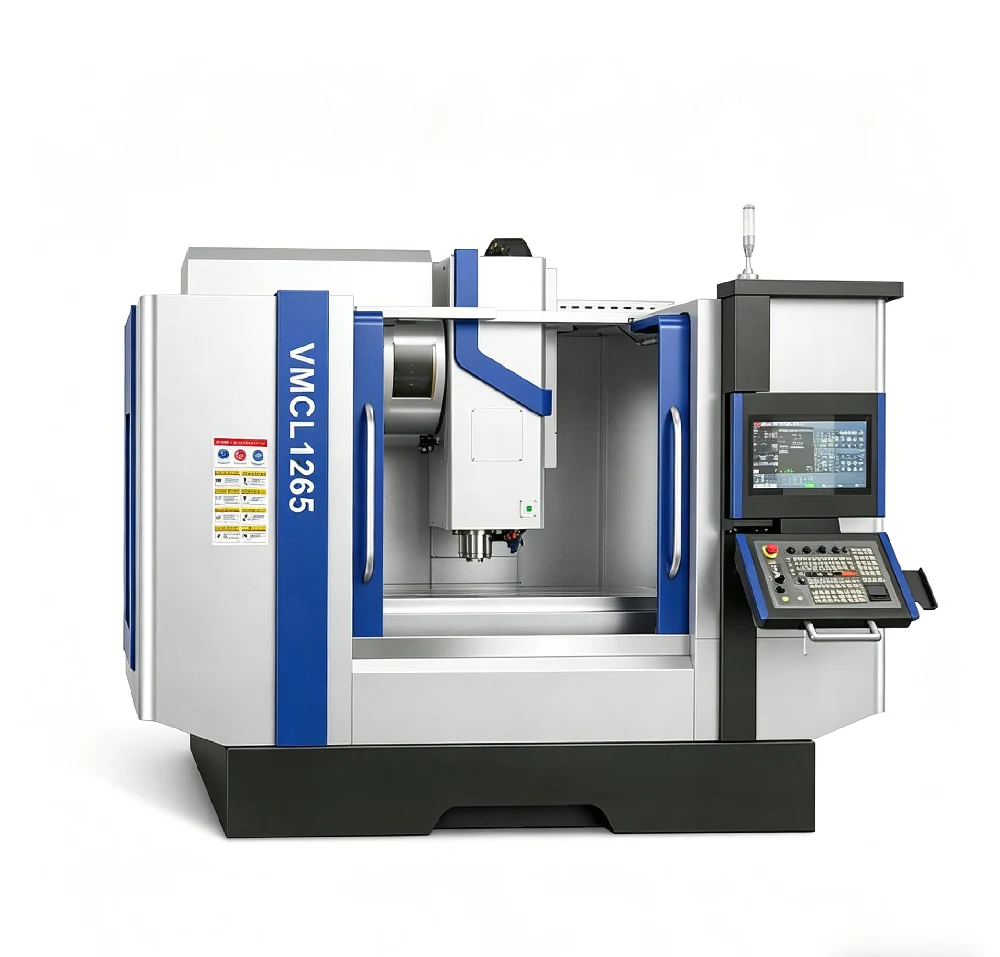

VMC L1265

• Table size (mm)1200×600
• Max. worktable load(kg)800
• T-slot (number*width*distance)5-18-100

Official parameter sheet

Vertical Machining Centers

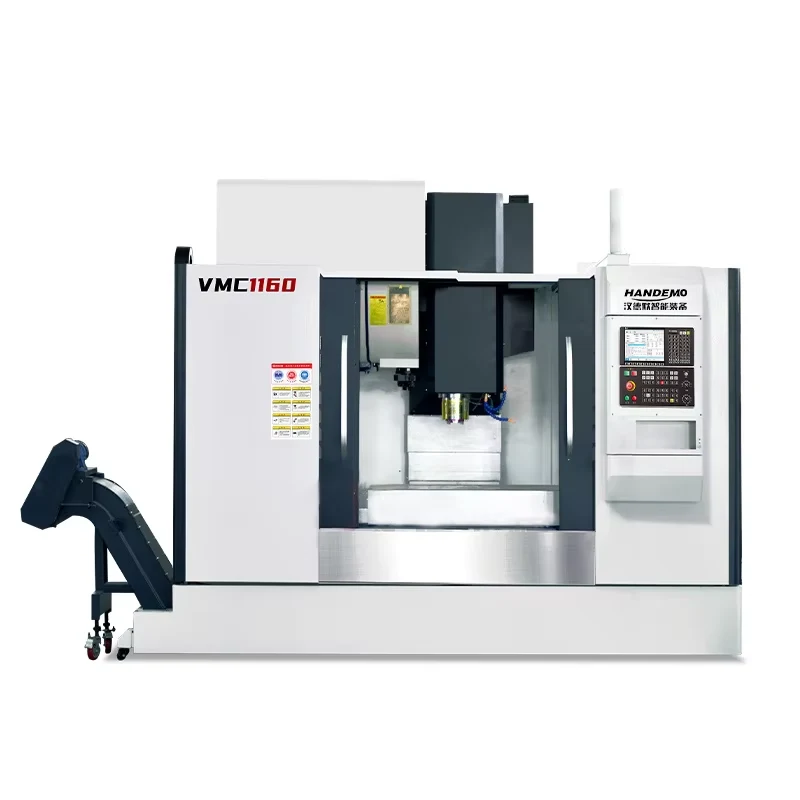

VMC1160

• Table size (mm)1200×600 / 1200×600
• Max. worktable load(kg)800 / 800
• X-axis travel(mm)1100 / 1100

Official parameter sheet

Vertical Machining Centers

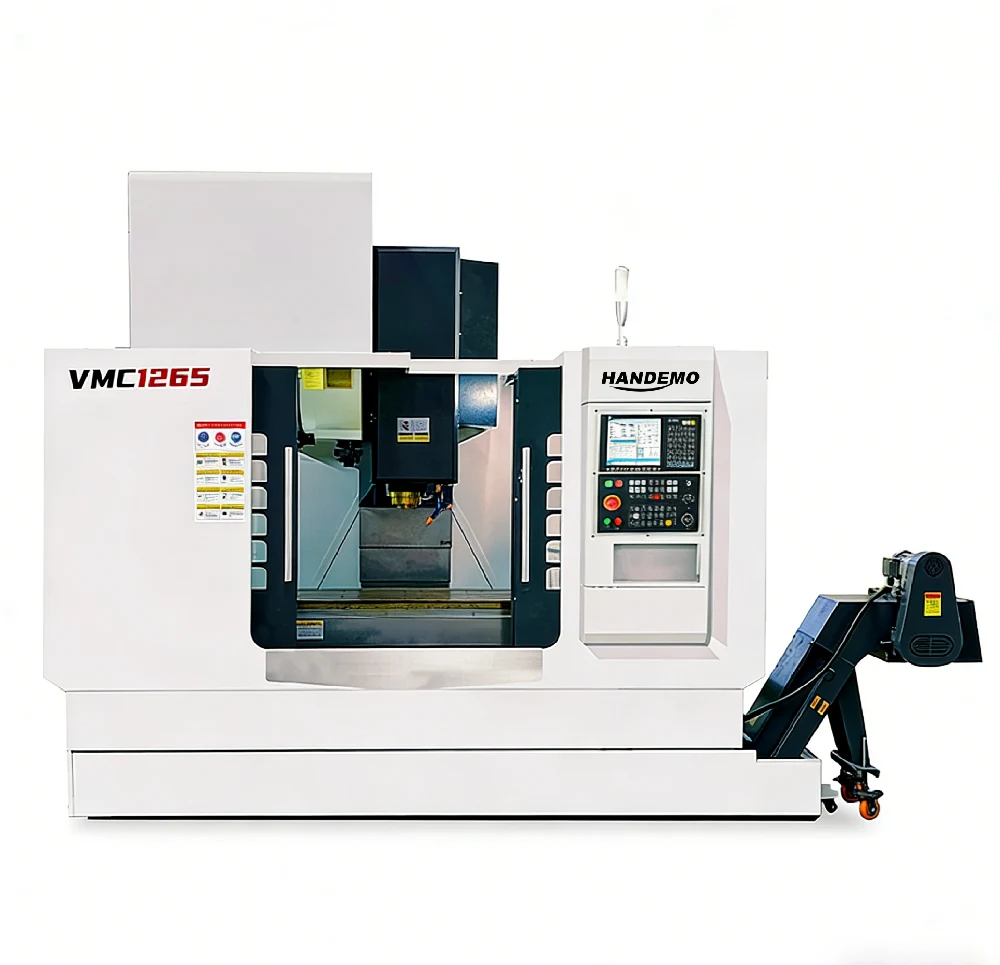

VMC1265

• Table size (mm)1200×600
• Max. worktable load(kg)800
• T-slot (number*width*distance)5-18-100

Official parameter sheet

Vertical Machining Centers

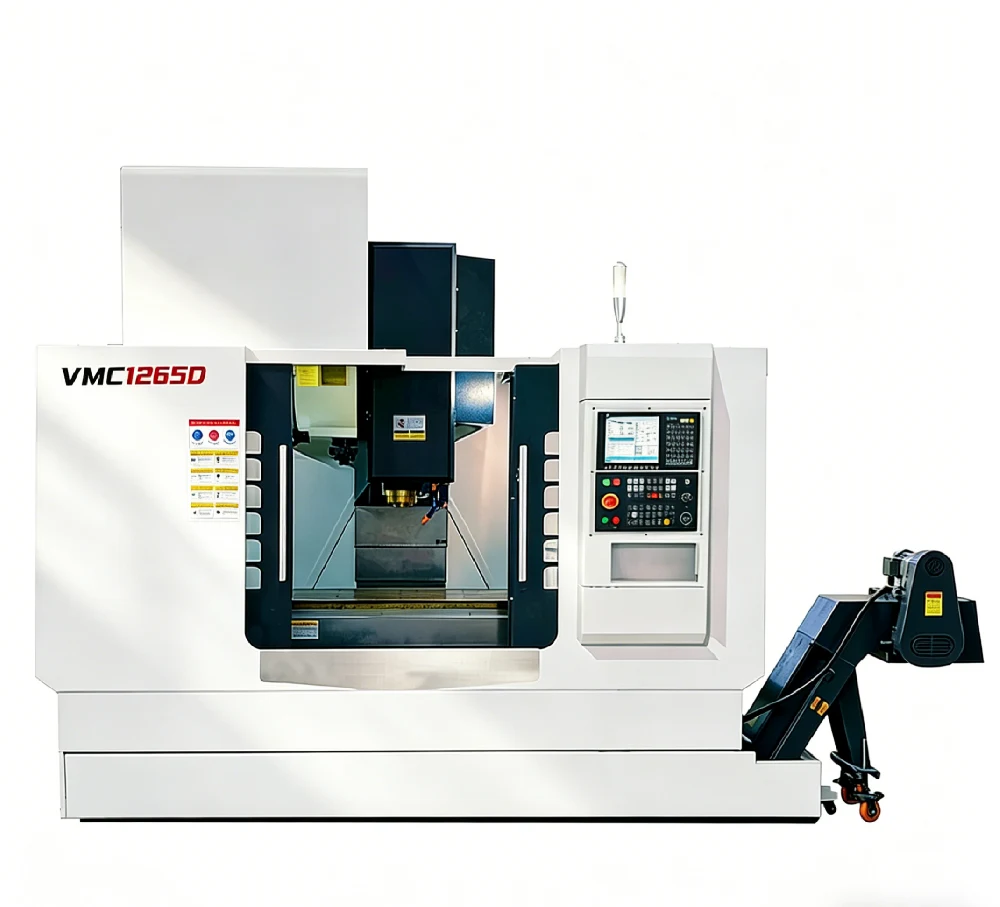

VMC1265D

• Table size (mm)1200×600
• Max. worktable load(kg)800
• T-slot (number*width*distance)5-18-100

Official parameter sheet

Vertical Machining Centers

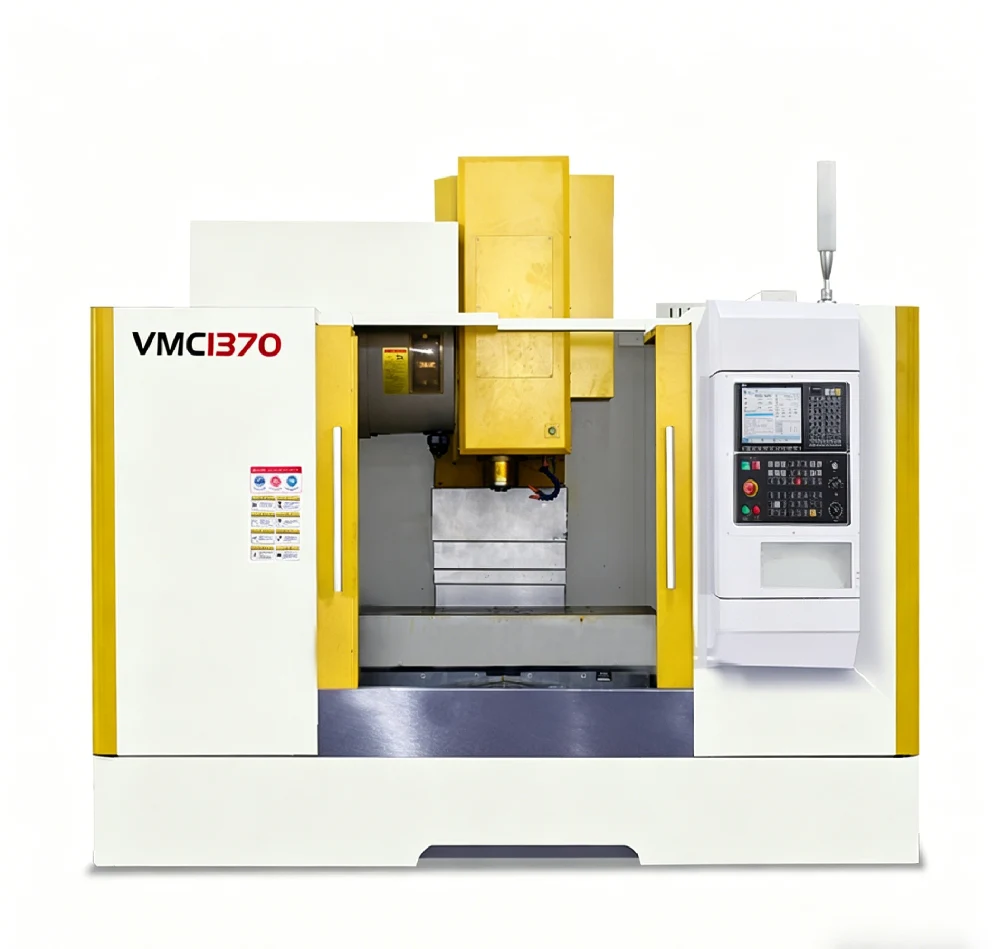

VMC1370

• Table size (mm)1400×700
• Max. worktable load(kg)800
• T-slot (number*width*distance)5-18-130

Official parameter sheet

Vertical Machining Centers

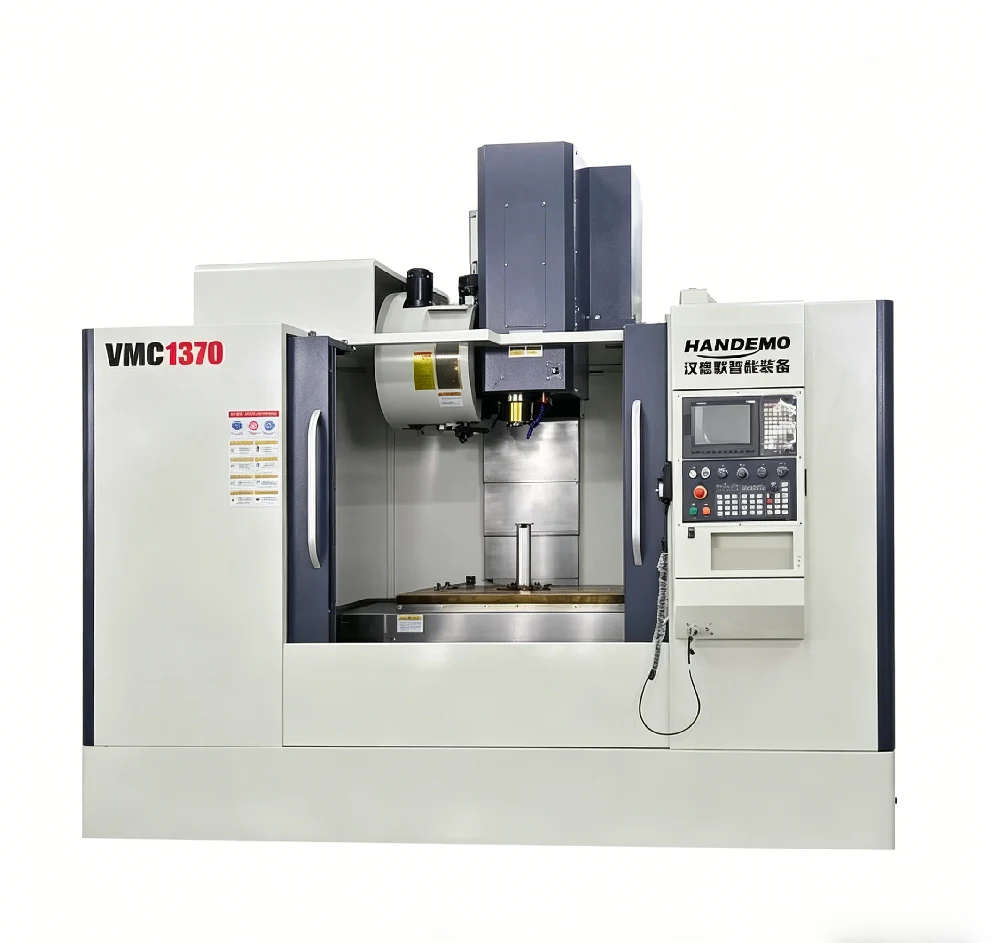

VMC1370D

• Table size (mm)1400×700
• Max. worktable load(kg)800
• T-slot (number*width*distance)5-18-130

Official parameter sheet

Vertical Machining Centers

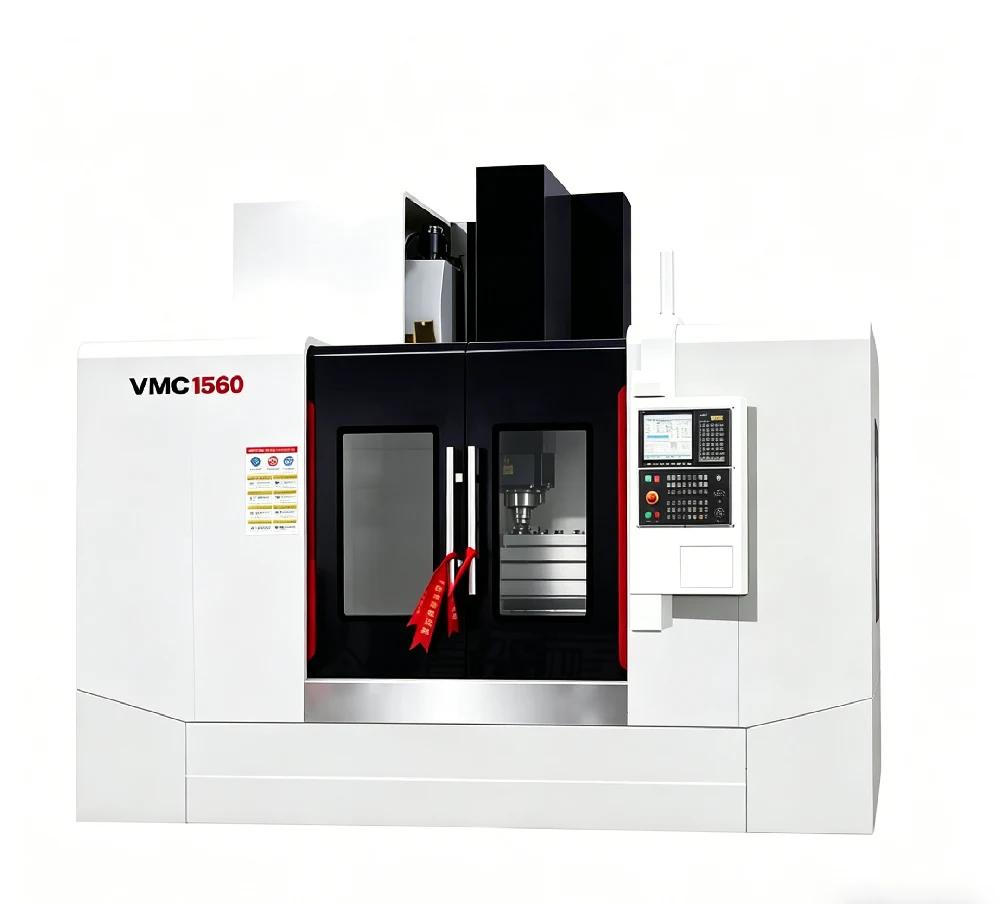

VMC1560

• Table size (mm)2200×600
• Max. worktable load(kg)1500
• T-slot (number*width*distance)5-18-100

Official parameter sheet

Vertical Machining Centers

VMC1690

• Table size (mm)1600×800
• Max. worktable load(kg)1500
• X-axis travel(mm)1600

Official parameter sheet

Vertical Machining Centers

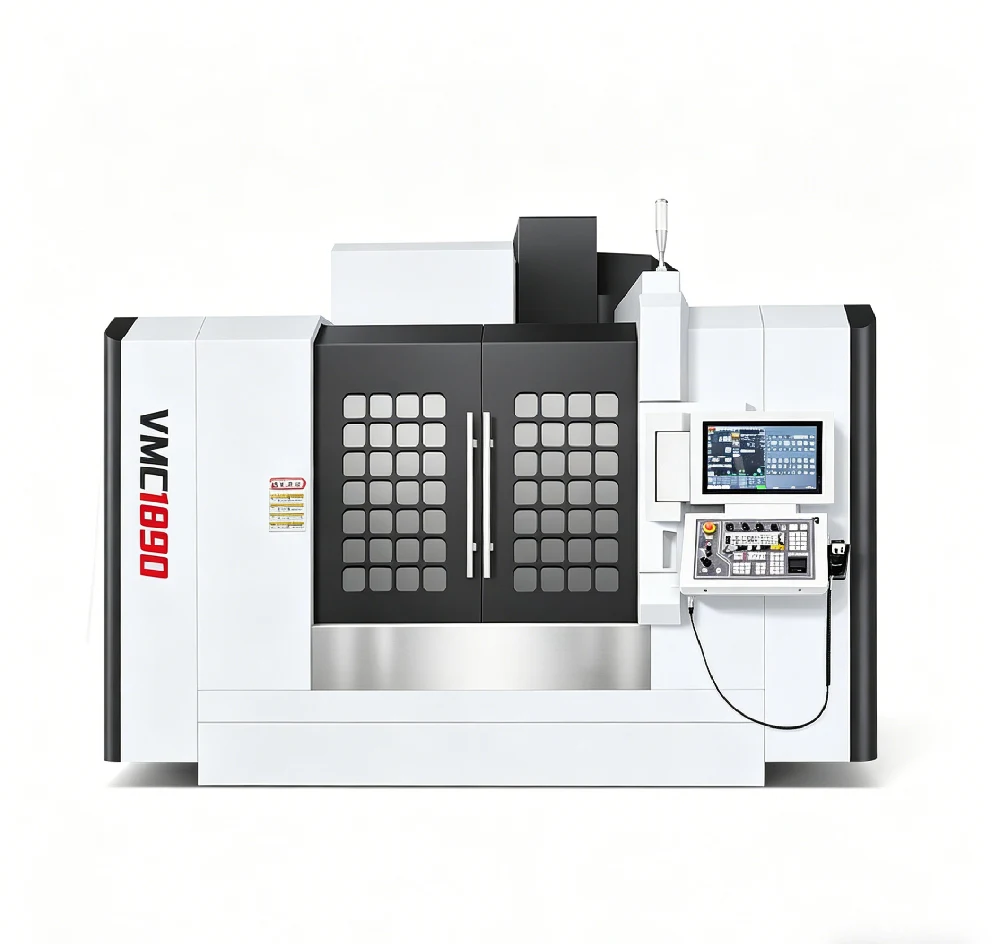

VMC1890

• Table size (mm)2000×900
• Max. worktable load(kg)1600
• X-axis travel(mm)1800

Official parameter sheet

Vertical Machining Centers

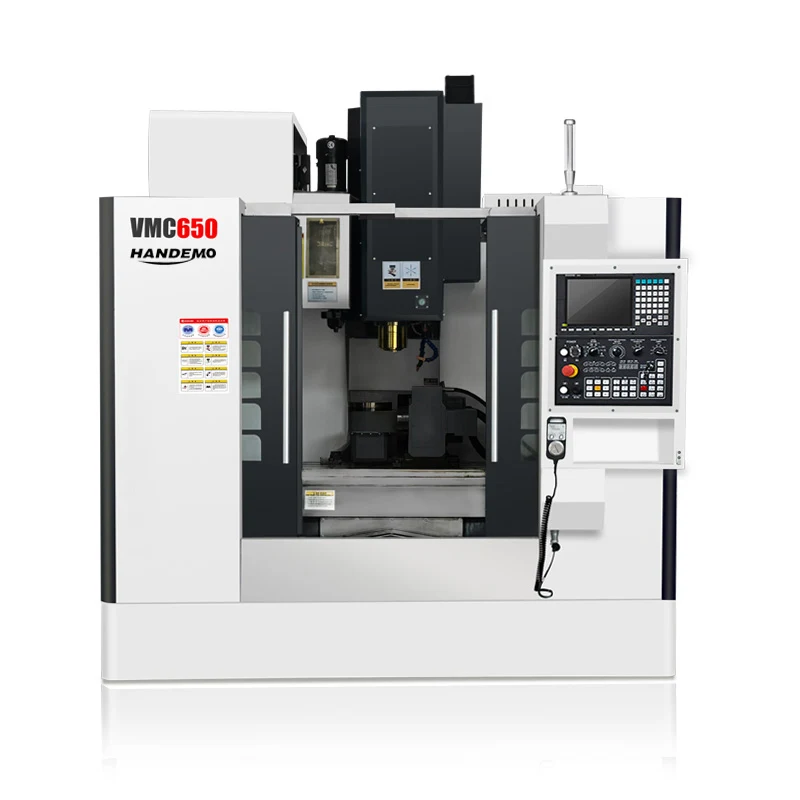

VMC650

• Table size (mm)1000×400
• Max. worktable load(kg)400
• X-axis travel(mm)650

Official parameter sheet

Vertical Machining Centers

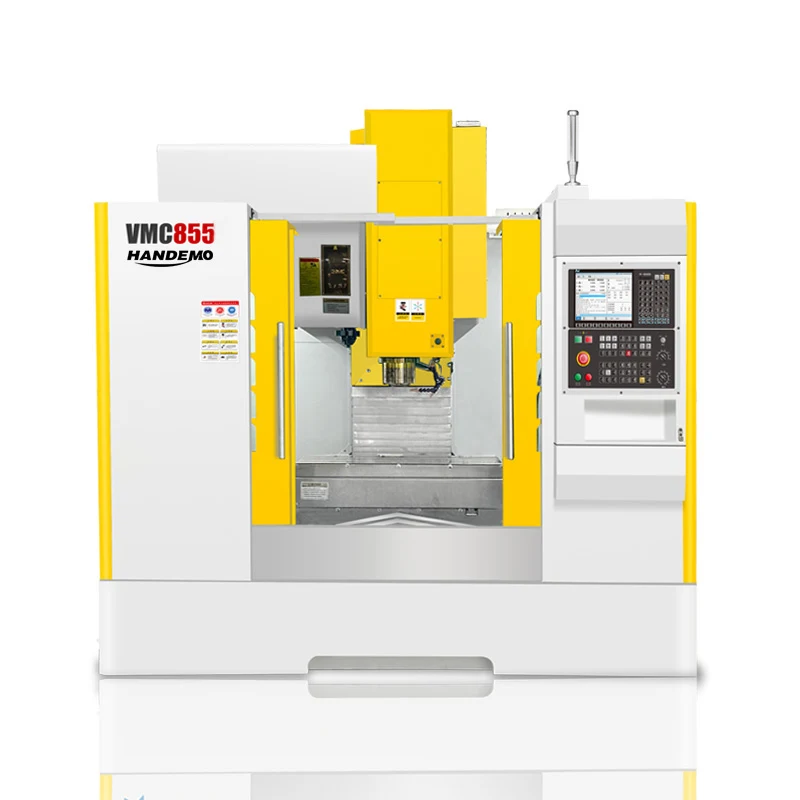

VMC855

• Table size (mm)1000×550
• Max. worktable load(kg)600
• X-axis travel(mm)800

Official parameter sheet

Vertical Machining Centers

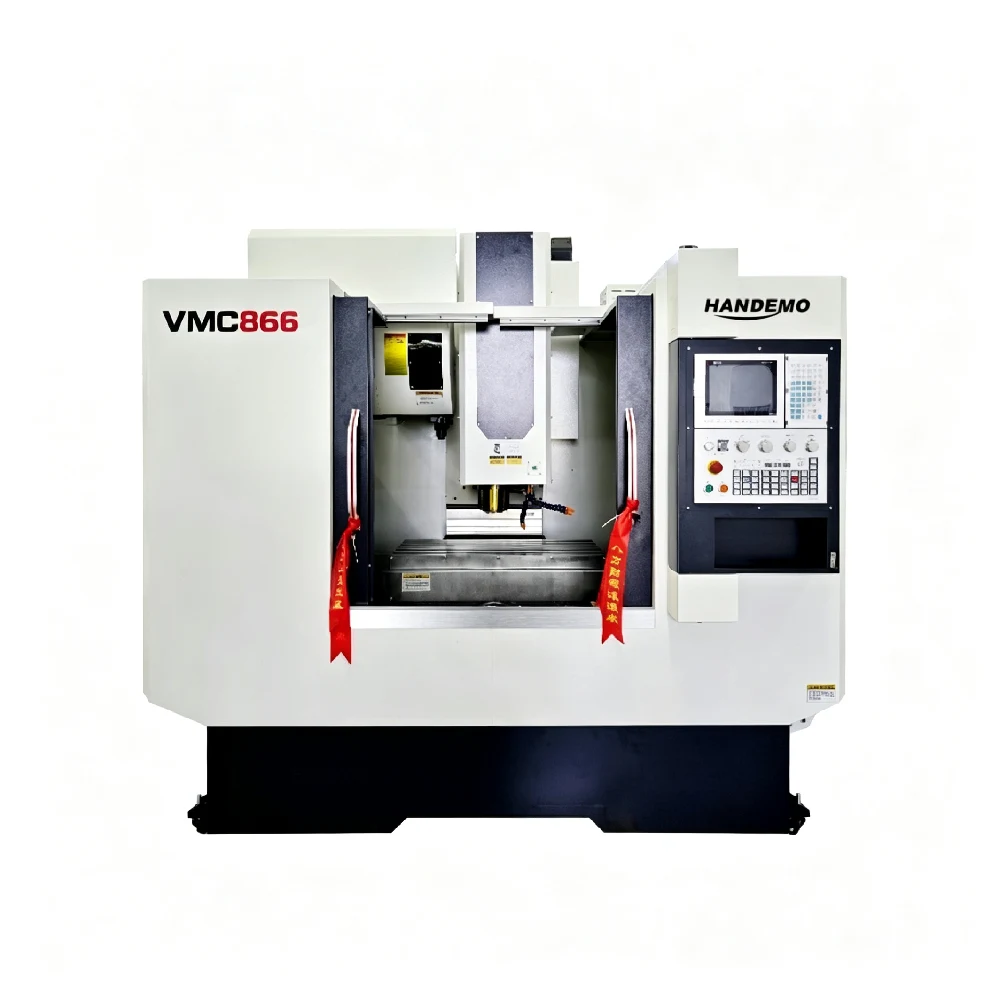

VMC866

• Table size (mm)1000×550
• Max. worktable load (kg)600
• X-axis travel (mm)850

Official parameter sheet

Vertical Machining Centers

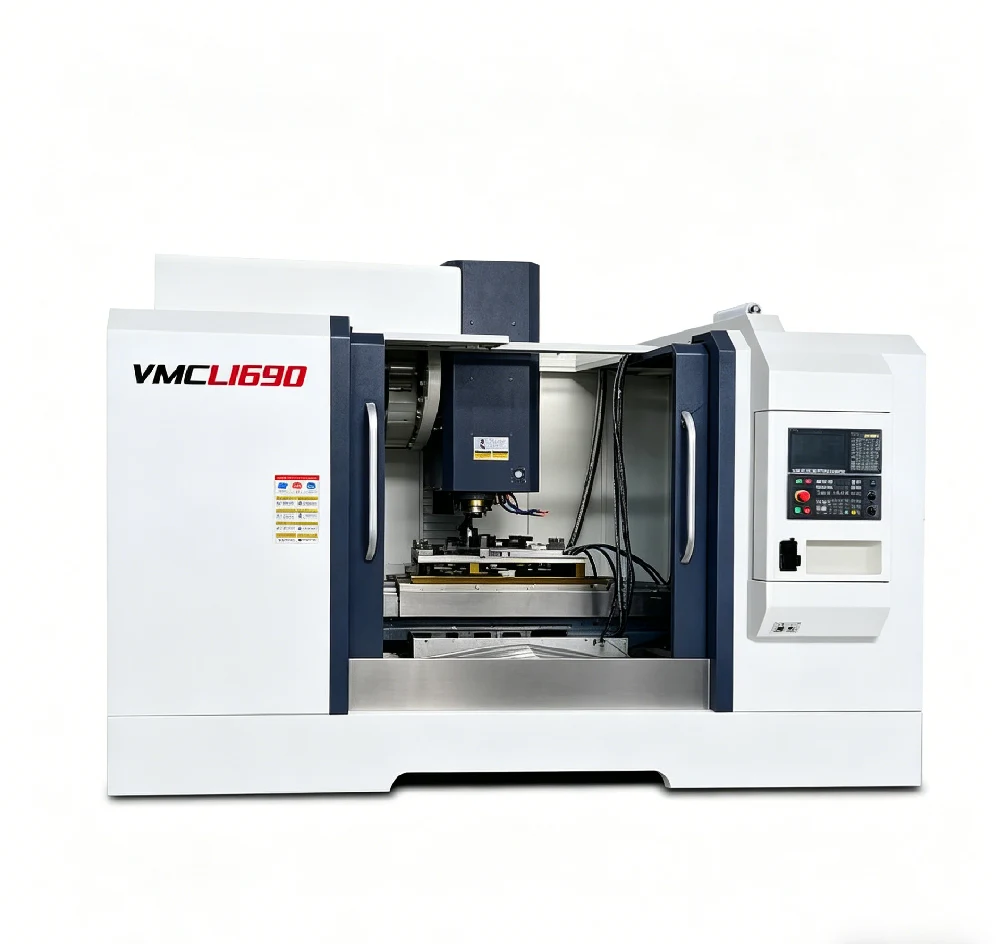

VMCL1690

• Table size (mm)1600×800
• Max. worktable load(kg)1500
• X-axis travel(mm)1600

Official parameter sheet
